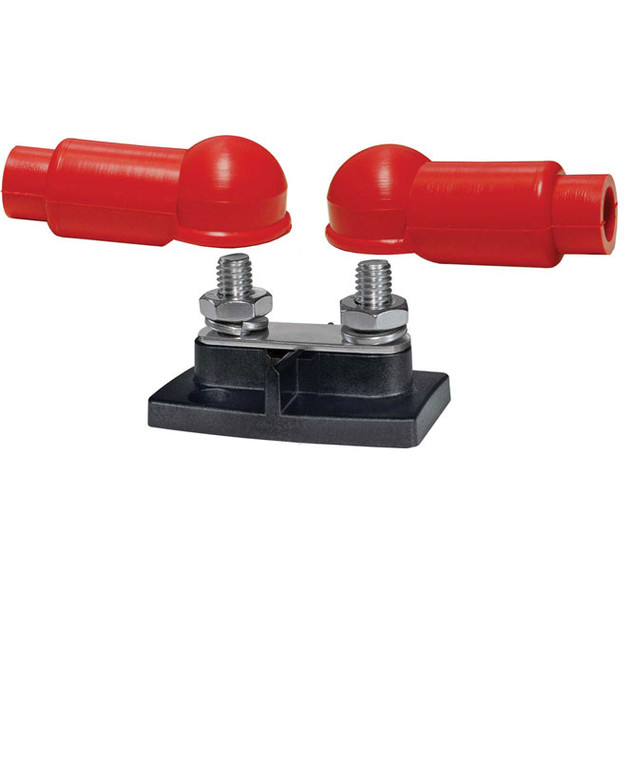

Blue Sea Systems 2019 PowerBar Dual BusBar - Two 3/8"-16 Stud and Insulators

Blue Sea Systems 2019 PowerBar Dual BusBar - Two 3/8"-16 Stud and Insulators

PowerBar Dual BusBar - Two 3/8"-16 Stud and Insulators, to a maximum of 48V DC. Provides compact high-ampere busing with 3/8" terminal studs.

Installation Notes:

• Stud Torque: 100 in-lb (11.3 Nm)

Why Choose This BusBar?

• Lands many circuits on one bus instead of stacking ring terminals on a single stud
• Keeps connections tight and accessible, which is where most electrical faults start
• Makes the distribution point readable, so the next person can trace a circuit
• Tin-plated copper resists the corrosion a bare copper connection suffers afloat

Specifications:

• Maximum Amperage: 200A
• Maximum Voltage: 48V DC
• Number of Terminal Studs: 2
• Terminal Type: 3/8"-16 Stud
• Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material: Tin-Plated Copper CDA 110/UNS11000
• Weight: 0.34lb (0.15 kg)
