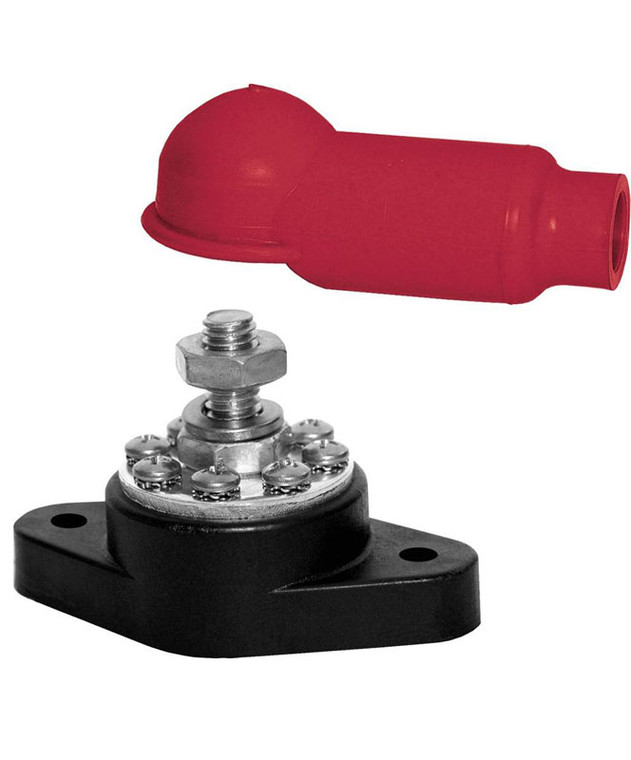

Blue Sea Systems 2103 PowerPost Plus - 3/8"-16 Stud
Blue Sea Systems 2103 PowerPost Plus - 3/8"-16 Stud
PowerPost Plus - 3/8"-16 Stud, to a maximum of 48V DC. 150 Ampere bus allows small wire connections at high amperage cable connections.
Features:
Installation Notes:
Why Choose This BusBar?
Specifications:
PowerPost Plus - 3/8"-16 Stud, to a maximum of 48V DC. 150 Ampere bus allows small wire connections at high amperage cable connections.
Features:
- Connects high amperage cables securely
- Stud dimensions: 3/8" x 3/4"
- Base Material is Black Nylon 8231 GHS
Installation Notes:
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
Why Choose This BusBar?
- Lands many circuits on one bus instead of stacking ring terminals on a single stud
- Keeps connections tight and accessible, which is where most electrical faults start
- Makes the distribution point readable, so the next person can trace a circuit
- Tin-plated copper resists the corrosion a bare copper connection suffers afloat
Specifications:
- Amperage: 150A DC
- Color: Red
- Maximum Voltage: 48V DC
- Stud Size: 3/8"-16 x 3/4"
- Base Material: Reinforced Thermoplastic
- Bus Material: Tin-Plated Copper
- Screw Size: #8-32
- Weight: 0.34lb (0.15 kg)
| Brand | Blue Sea Systems |
|---|---|
