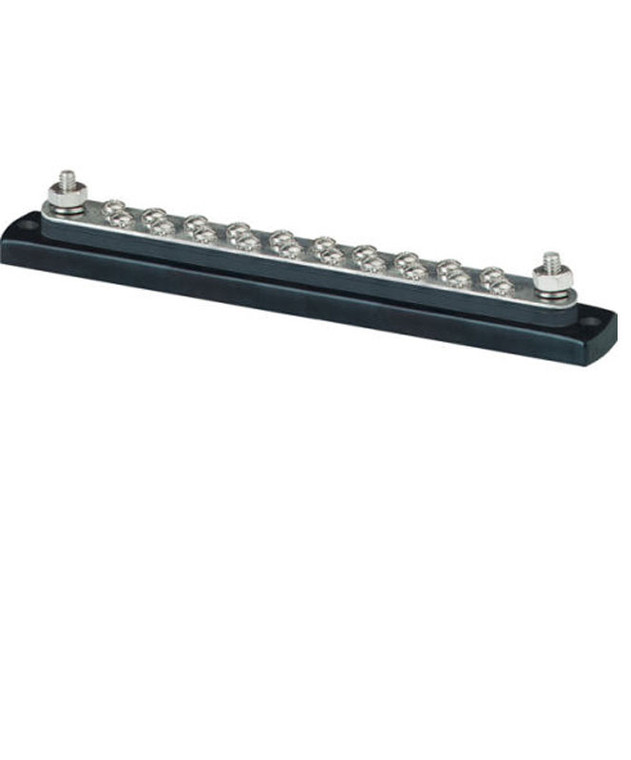

Blue Sea Systems 2302 Common 150A BusBar - 20 Gang

Blue Sea Systems 2302 Common 150A BusBar - 20 Gang

Common 150A BusBar - 20 Gang, rated 130A AC 150A DC continuous to a maximum of 300V AC 48V DC. The industry standard busbar for the collection of negative or AC ground circuits.

Features:

• The industry standard busbar for positive distribution

Installation Notes:

• Screw Terminal Torque: 15 in-lb (1.69 Nm)
• Stud Torque: 60 in-lb (6.78 Nm)

Why Choose This BusBar?

• Lands many circuits on one bus instead of stacking ring terminals on a single stud
• Keeps connections tight and accessible, which is where most electrical faults start
• Makes the distribution point readable, so the next person can trace a circuit
• Tin-plated copper resists the corrosion a bare copper connection suffers afloat

Specifications:

• Maximum Voltage: 300V AC 48V DC
• Number of Screw Terminals: 20
• Number of Terminal Studs: 2
• Terminal Type: 1/4" Stud #8-32 Screw
• Continuous Rating: 130A AC 150A DC
• Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
• Weight: 0.53lb (0.24 kg)
