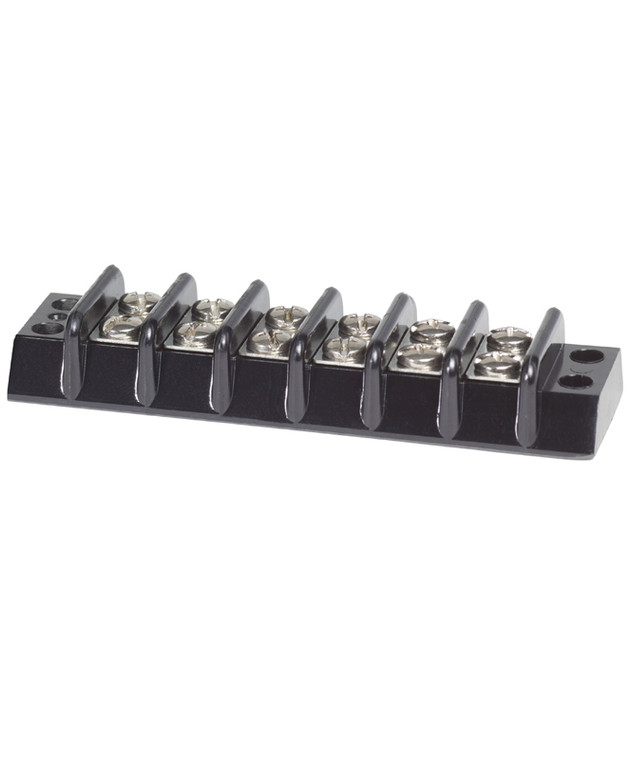

Blue Sea Systems 2506 Terminal Block 30A - 6 Circuit

Blue Sea Systems 2506 Terminal Block 30A - 6 Circuit

Terminal Block 30A - 6 Circuit, rated 30A continuous to a maximum of 600V AC/DC. Closed back design completely insulates power from the mounting surface.

Features:

• Each screw pair is one isolated circuit
• Jumpers allow creation of common circuits

Installation Notes:

• Screw Terminal Torque: 10 in-lb (1.13 Nm)

Why Choose This Part?

• Made to fit the Blue Sea product it belongs to, so nothing is improvised
• Keeps the installation finished and safe to touch rather than left exposed
• Correct material and size the first time, instead of a universal part trimmed to fit

Specifications:

• Circuits: 6
• Length: 4.38in (111.25 mm)
• Maximum Voltage: 600V AC/DC
• Continuous Rating: 30A
• Base Material: UL 94 V0, PC
• Bus Material: Nickel-Plated Brass
• Mounting Screw: #10 [M5]
• Screw Material: Stainless Steel
• Terminal Screws: M4
• Wire Terminal Size: #8 [M4]
• Weight: 0.21lb (0.1 kg)
