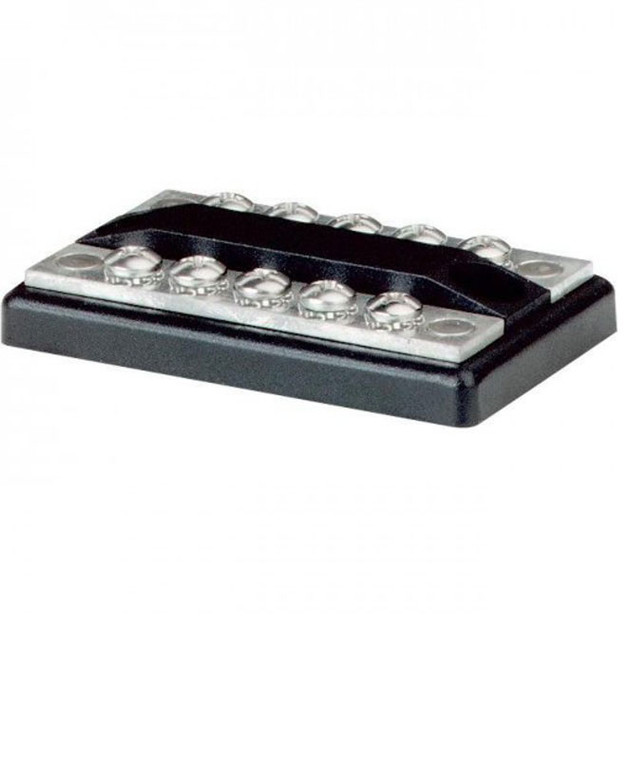

Blue Sea Systems 2701 DualBus 100A BusBar - 5 Circuit

Blue Sea Systems 2701 DualBus 100A BusBar - 5 Circuit

DualBus 100A BusBar - 5 Circuit, rated 100A continuous to a maximum of 300V AC 48V DC. Combines negative and positive buses on one block.

Installation Notes:

• Screw Terminal Torque: 15 in-lb (1.69 Nm)

Why Choose This BusBar?

• Lands many circuits on one bus instead of stacking ring terminals on a single stud
• Keeps connections tight and accessible, which is where most electrical faults start
• Makes the distribution point readable, so the next person can trace a circuit
• Tin-plated copper resists the corrosion a bare copper connection suffers afloat

Specifications:

• Maximum Voltage: 300V AC 48V DC
• Number of Screw Terminals: 5 per bus
• Terminal Type: #8-32 Screw
• Continuous Rating: 100A
• Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
• Height: 5/8 in (15.88 mm)
• Weight: 0.17lb (0.08 kg)
