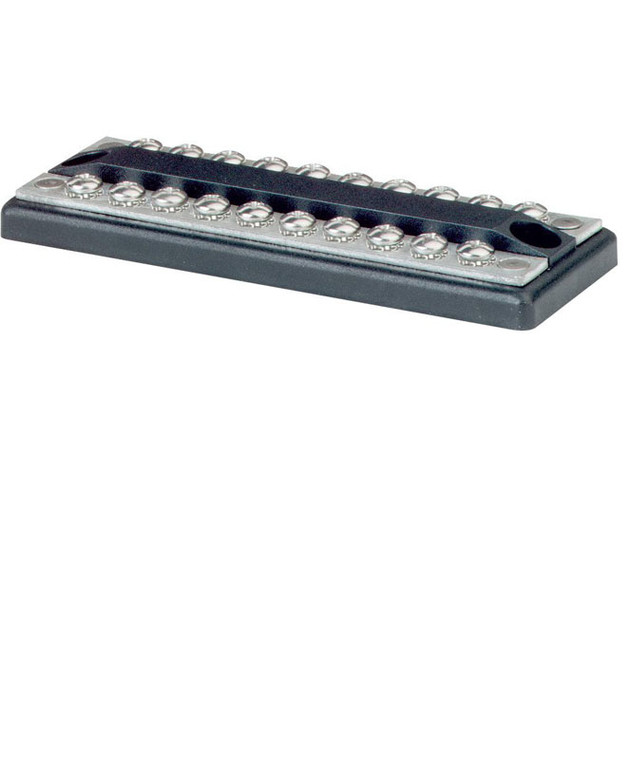

Blue Sea Systems 2702 DualBus 100A BusBar - 10 Circuit
Blue Sea Systems 2702 DualBus 100A BusBar - 10 Circuit
DualBus 100A BusBar - 10 Circuit, rated 100A continuous to a maximum of 300V AC 48V DC. Combines negative and positive buses on one block.
Installation Notes:
Why Choose This BusBar?
Specifications:
DualBus 100A BusBar - 10 Circuit, rated 100A continuous to a maximum of 300V AC 48V DC. Combines negative and positive buses on one block.
Installation Notes:
- Screw Terminal Torque: 15 in-lb (1.69 Nm)
Why Choose This BusBar?
- Lands many circuits on one bus instead of stacking ring terminals on a single stud
- Keeps connections tight and accessible, which is where most electrical faults start
- Makes the distribution point readable, so the next person can trace a circuit
- Tin-plated copper resists the corrosion a bare copper connection suffers afloat
Specifications:
- Maximum Voltage: 300V AC 48V DC
- Number of Screw Terminals: 10 per bus
- Terminal Type: #8-32 Screw
- Continuous Rating: 100A
- Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
- Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
- Height: 5/8 in (15.88 mm)
- Weight: 0.27lb (0.12 kg)
| Brand | Blue Sea Systems |
|---|---|
| Cross Reference / Specs |
