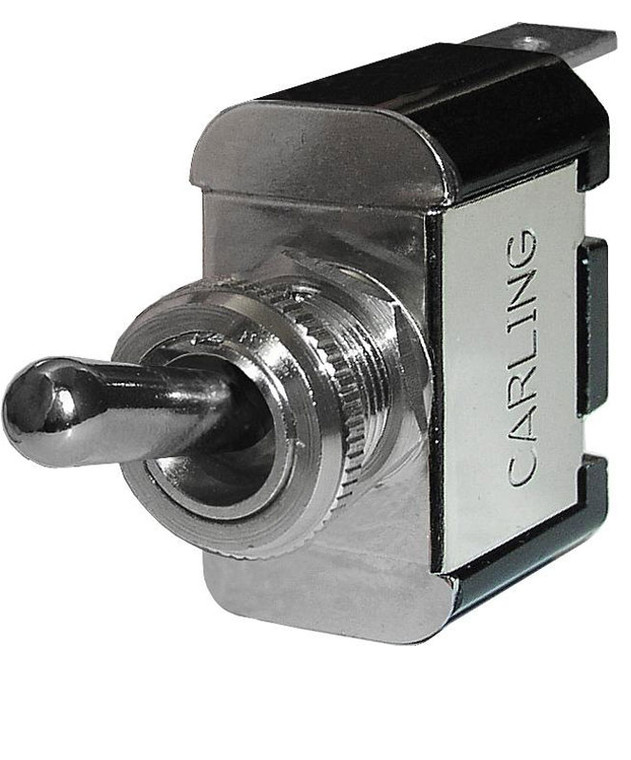

Blue Sea Systems 4152 WeatherDeck Toggle Switch SPDT - ON-OFF-ON

Blue Sea Systems 4152 WeatherDeck Toggle Switch SPDT - ON-OFF-ON

WeatherDeck Toggle Switch SPDT - ON-OFF-ON. When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes.

Features:

• Specially manufactured by Carling Technologies for use in Blue Sea Systems' WeatherDeck® Panels
• Nickel-plated brass and phenolic non-corrosive construction

Why Choose This Switch?

• Panel-mount switching built for a marine helm rather than an automotive dash
• Sealed and corrosion-resistant where a household or auto part would fail
• Rated for the real current of the circuit, not just a signal load
• Mounts cleanly in a standard cut-out so the helm stays tidy

Specifications:

• Action: ON-OFF-ON
• Pole / Throw: SPDT
• Poles: 1
• Common Applications: combining nav lights or anchor light with independent bulbs
• Maximum Amperage: 15A @ 125V AC 15A @ 12V DC 10A @ 250V AC
• Terminal Type: Quick Connect Tab
• Number of Terminals: 3
• Terminal Size: 0.25in (6.35 mm)
• Weight: 0.10lb (0.05 kg)
