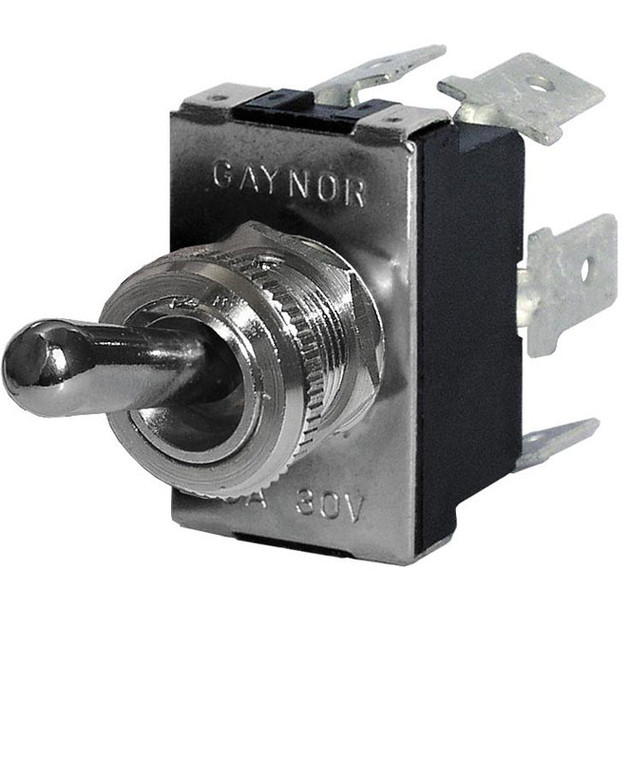

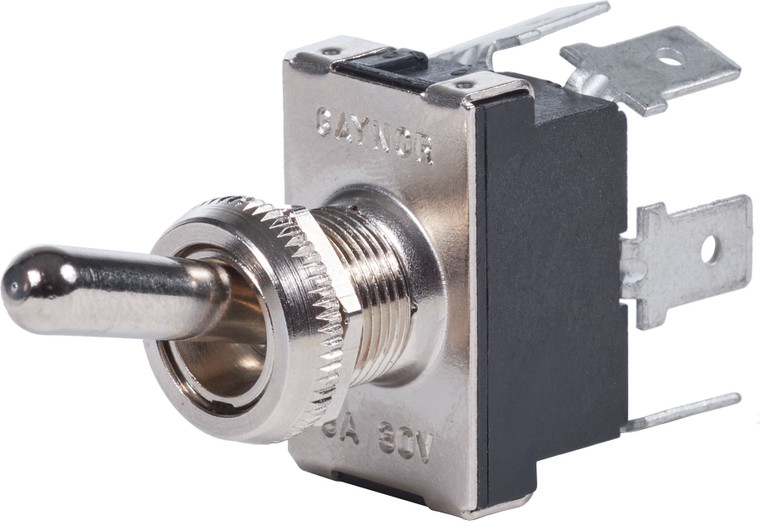

Blue Sea Systems 4155 WeatherDeck Toggle Switch DPDT - ON-OFF-ON

Blue Sea Systems 4155 WeatherDeck Toggle Switch DPDT - ON-OFF-ON

WeatherDeck Toggle Switch DPDT - ON-OFF-ON, to a maximum of 30V DC. When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes.

Features:

• Nickel-plated brass and phenolic non-corrosive construction

Why Choose This Switch?

• Panel-mount switching built for a marine helm rather than an automotive dash
• Sealed and corrosion-resistant where a household or auto part would fail
• Rated for the real current of the circuit, not just a signal load
• Mounts cleanly in a standard cut-out so the helm stays tidy

Specifications:

• Action: ON-OFF-ON
• Pole / Throw: DPDT
• Poles: 2
• Common Applications: combining nav lights with anchor light with shared bulb
• Maximum Amperage: 5A
• Maximum Voltage: 30V DC
• Terminal Type: Quick Connect Tab
• Number of Terminals: 6
• Terminal Size: 0.25in (6.35 mm)
• Weight: 0.10lb (0.05 kg)
