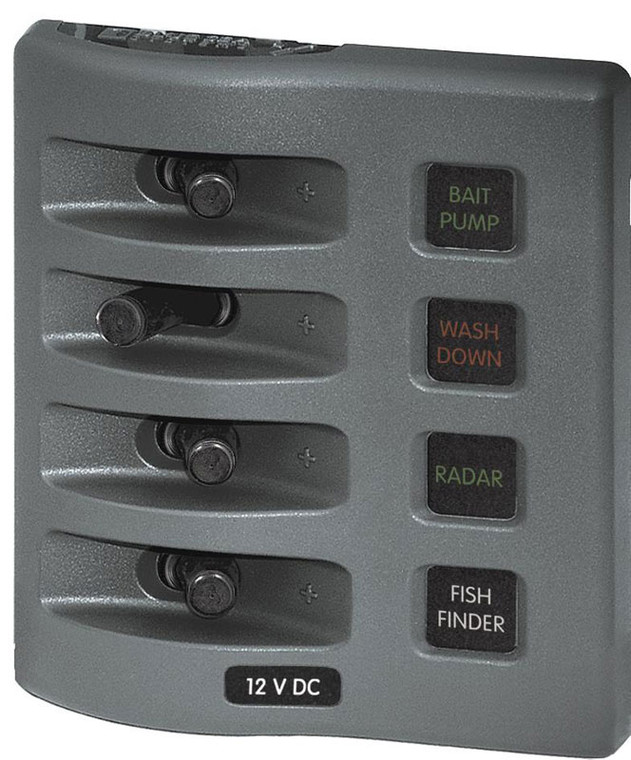

Blue Sea Systems 4304 WeatherDeck 12V DC Waterproof Fuse Panel - Gray 4 Positions

Blue Sea Systems 4304 WeatherDeck 12V DC Waterproof Fuse Panel - Gray 4 Positions

WeatherDeck 12V DC Waterproof Fuse Panel - Gray 4 Positions. Panel front rated IP67 when properly mounted with watertight mounting gasket.

Features:

• IP67 – protected against immersion up to 1 meter for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting circuit for remote switching and dimming
• Available in 2, 4, 6, and 8 circuit models
• Each panel can be mounted in four different orientations
• Integrated ATO/ATC fuse based circuit protection
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Why Choose This Panel?

• Puts switching and circuit protection behind one cut-out instead of scattered devices
• Labelled circuits make a fault quick to isolate at the helm
• A finished, flush installation rather than a hole and a bundle of wires
• Built to marine standards for a damp, vibrating environment

Specifications:

• Weatherproof: Waterproof
• Positions: 4
• Nominal Voltage: 12V DC
• Circuit Protection: Fuse
• Maximum Amperage: 15A @ 12V DC (per circuit)
• Panel Cumulative Rating: 60A
• Backlit Label: Bicolored LED
• Backlighting Amperage: 10mA /Illuminated Circuit
• Backlighting Voltage: 12V DC
• Material: Reinforced Polycarbonate
• Height: 4.30in (109.22 mm)
• Width: 3.88in (98.55 mm)
• Depth: 2.50in (63.5 mm)
• Weight: 0.90lb (0.41 kg)
