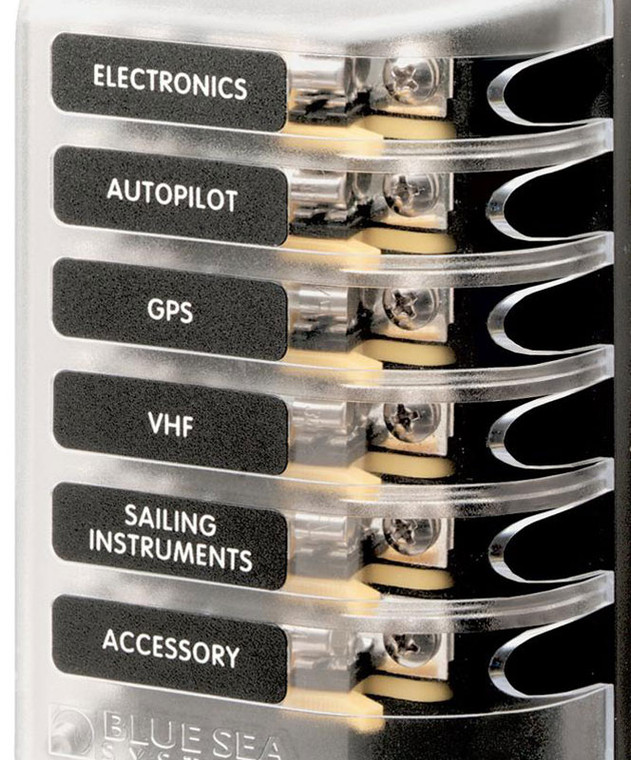

Blue Sea Systems 5018 ST Glass 6 Circuit Fuse Block with Cover

Blue Sea Systems 5018 ST Glass 6 Circuit Fuse Block with Cover

ST Glass 6 Circuit Fuse Block with Cover, to a maximum of 32V DC. Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses.

Features:

• Clear insulating cover with label recesses for accept Large Format Labels
• Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
• Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses

Why Choose This Fuse Block?

• Puts the circuit protection in one place instead of inline fuses buried in the harness
• Makes a blown fuse quick to find and quick to change
• Keeps every branch circuit labelled and traceable at one point
• Built for the vibration and damp a boat sees, unlike an automotive block

Specifications:

• Maximum Amperage: 100A per block 30A per circuit
• Maximum Voltage: 32V DC
• Mounting: #10 Screw
• Base Material: Reinforced Polycarbonate
• Cover Material: Polycarbonate
• Screw Terminal Type: #8-32 with Captive Star Lockwasher
• Weight: 0.48lb (0.22 kg)
