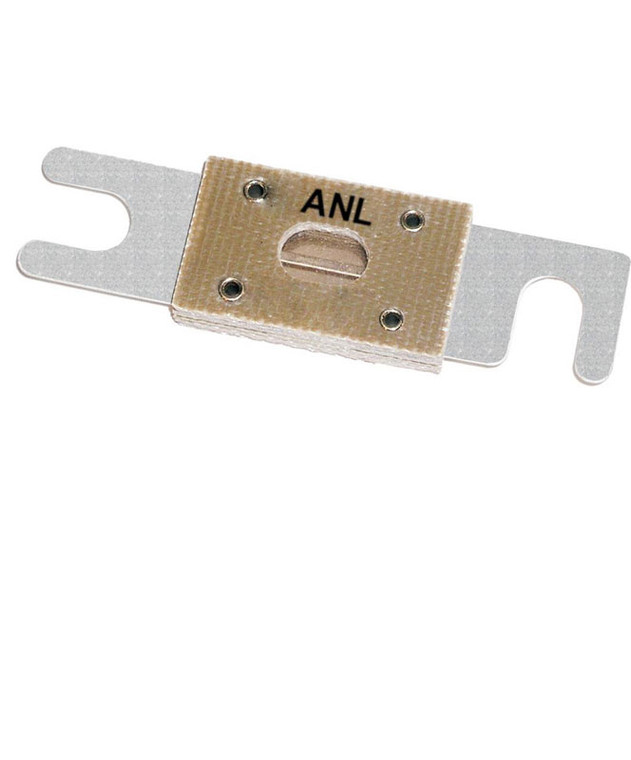

Blue Sea Systems 5124 ANL Fuse - 80 Amp
Blue Sea Systems 5124 ANL Fuse - 80 Amp
ANL Fuse - 80 Amp, to a maximum of 80V DC. 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks.
Features:
Why Choose This Fuse Block?
Specifications:
ANL Fuse - 80 Amp, to a maximum of 80V DC. 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks.
Features:
- Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats (35-500 Amp only)
- Silver-plated connector blades for corrosion resistance
- Visible indication of blown condition
- For use with Blue Sea Systems' ANL Fuse Blocks
Why Choose This Fuse Block?
- Puts the circuit protection in one place instead of inline fuses buried in the harness
- Makes a blown fuse quick to find and quick to change
- Keeps every branch circuit labelled and traceable at one point
- Built for the vibration and damp a boat sees, unlike an automotive block
Specifications:
- Amperage: 80A
- Ignition Protected: Yes
- Maximum Voltage: 80V DC
- Interrupt Capacity: 6000A @ 80V DC
- Weight: 0.05lb (0.02 kg)
| Manuals and Instructions | 5124 Fuse Comparison Chart |
|---|---|
| Brand | Blue Sea Systems |
