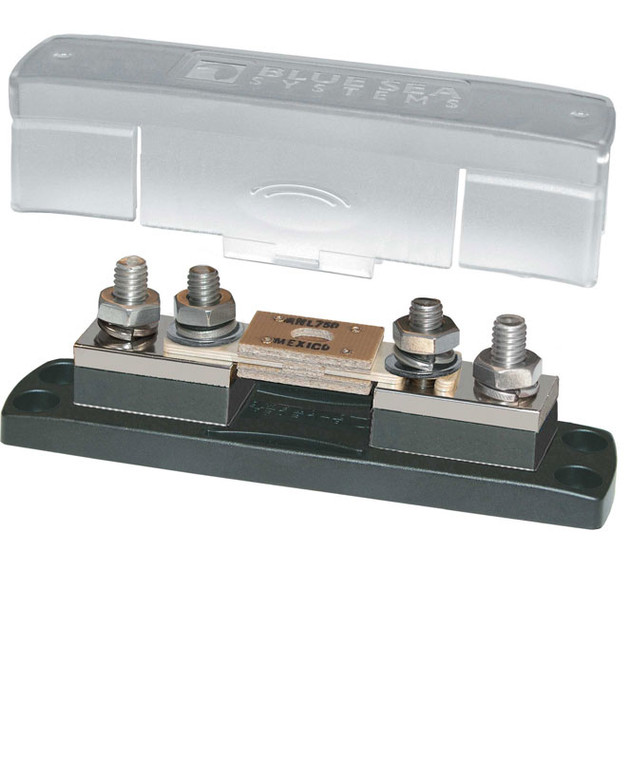

Blue Sea Systems 5503 ANL Fuse Block with Insulating Cover - 35 to 750A

Blue Sea Systems 5503 ANL Fuse Block with Insulating Cover - 35 to 750A

ANL Fuse Block with Insulating Cover - 35 to 750A, to a maximum of 32V DC. Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact.

Features:

• Accepts 5/16" (M8) ring terminals
• For use on systems up to 32 Volts DC
• Swing out design allows replacement of the fuse without removing fasteners
• UL 94-V0 base resists high heat
• Insert molded studs ensure secure fuse mounting
• Insulating cover satisfies ABYC/USCG requirements
• Cover breakouts allow wire access in any direction

Installation Notes:

• Stud Torque: 107 in-lb (12.09 Nm)

Why Choose This Fuse Block?

• Puts the circuit protection in one place instead of inline fuses buried in the harness
• Makes a blown fuse quick to find and quick to change
• Keeps every branch circuit labelled and traceable at one point
• Built for the vibration and damp a boat sees, unlike an automotive block

Specifications:

• Maximum Voltage: 32V DC
• Stud Size: 5/16"
• Base Material: Reinforced Polycarbonate
• Fuse Mounting Blocks: Tin-Plated Copper
• Maximum Cable Size: 4/0 AWG
• Maximum Torque: 107 in-lb (12.09 Nm)
• Terminal Stud Size: 5/16" - 18 (M8)
• Weight: 1.06lb (0.48 kg)
