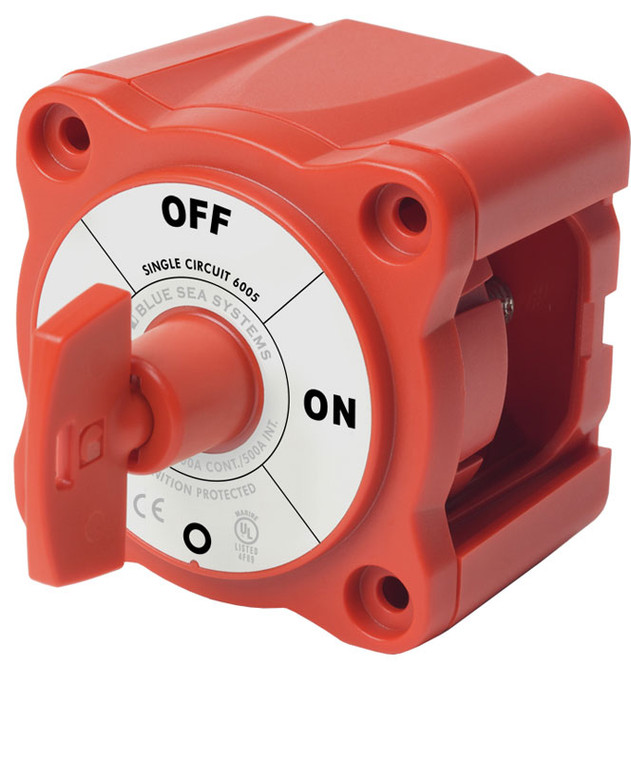

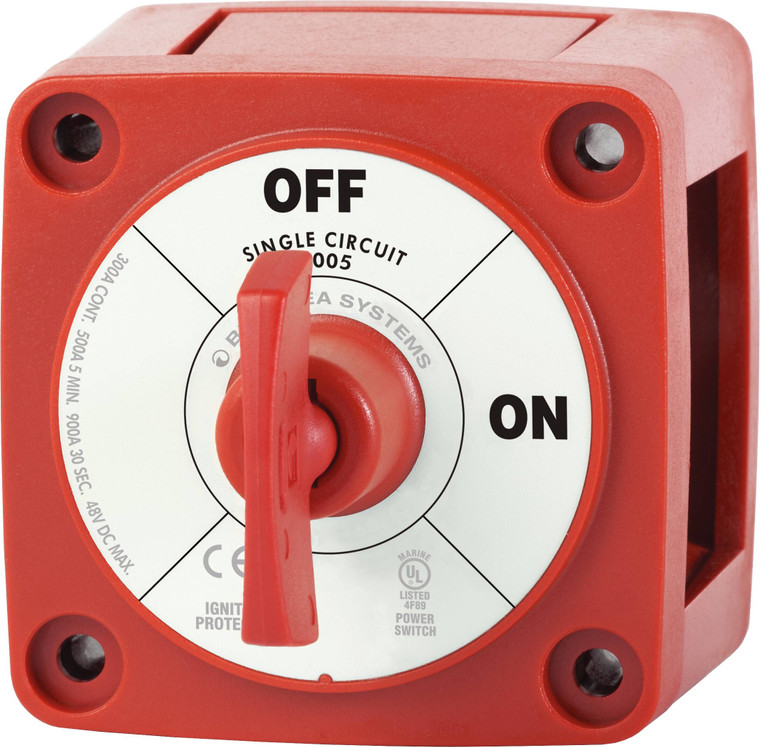

Blue Sea Systems 6005 m-Series Mini On-Off Battery Switch with Key - Red

Blue Sea Systems 6005 m-Series Mini On-Off Battery Switch with Key - Red

m-Series Mini On-Off Battery Switch with Key - Red, rated 300A continuous to a maximum of 48V DC. Ignition protected—safe for installation aboard gasoline powered boats.

Features:

• Case design allows surface, front panel, or rear panel mounting
• Isolating cover with snap-on sections protects rear contacts

Installation Notes:

• Terminal Stud Torque: 120 in-lb (13.56 Nm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept #10 Screw
• Stud Torque: 120 in-lb (13.56 Nm)

Why Choose This Battery Switch?

• Isolates the bank for safe service and for leaving the boat unattended
• Protects against a dead start battery by keeping banks separate in normal use
• Rated for the cranking surge an engine draws, not just the running load
• A standard, inspectable point of disconnect that a surveyor expects to find

Specifications:

• Switch Type: Single Circuit ON-OFF
• Color: Red
• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 48V DC
• Stud Size: 3/8"
• Continuous Rating: 300A
• Intermittent Rating: 500A (5 min)
• Starting Rating 30 sec: 900A
• Battery Inputs: 1
• Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
• Stud Material: Tinned Copper
• Switching Rating: 25A
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 0.62lb (0.28 kg)
