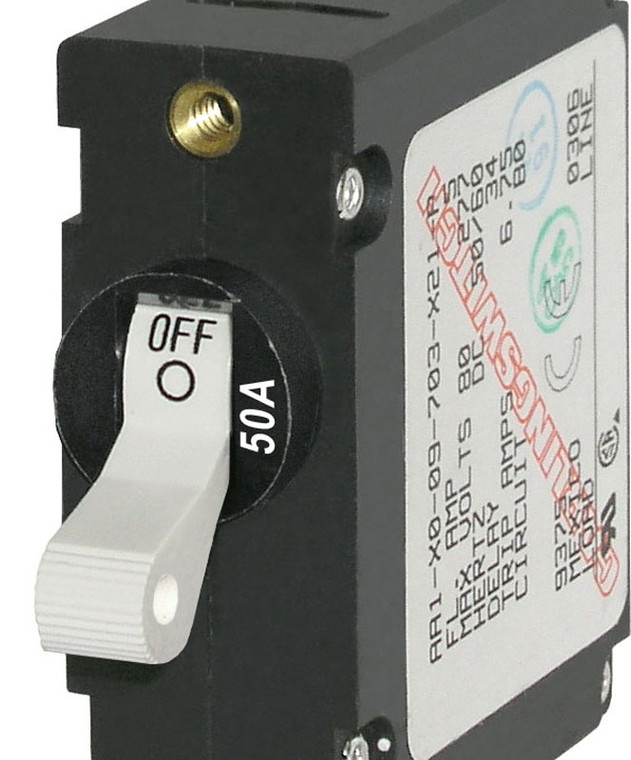

Blue Sea Systems 7230 A-Series White Toggle Circuit Breaker - Single Pole 50A

Blue Sea Systems 7230 A-Series White Toggle Circuit Breaker - Single Pole 50A

A-Series White Toggle Circuit Breaker - Single Pole 50A, to a maximum of 240V AC 32V DC. The industry standard circuit breaker for Blue Sea Systems' electrical panels.

Features:

• Meets American Boat and Yacht Council (ABYC) standards
• Combines switching and circuit protection into a single device
• "Trip Free" design cannot be held "ON" during fault current condition

Installation Notes:

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

Why Choose a Resettable Circuit Breaker?

• Resets by hand after a fault, so there are no spare fuses to carry or lose
• Shows the fault instead of hiding it, so a tripped circuit is obvious at the panel
• Sized for marine DC and AC loads rather than an automotive accessory circuit
• Protects the wiring, not just the device on the end of it

Specifications:

• Amperage: 50A AC 50A DC
• Color: White
• Actuator Style: Toggle
• Poles: 1
• Maximum Voltage: 240V AC 32V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 3000A @ 120V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Switching Cycles: 10000
• Terminal Screws: #10-32 Stainless Steel
• Weight: 0.17lb (0.08 kg)
