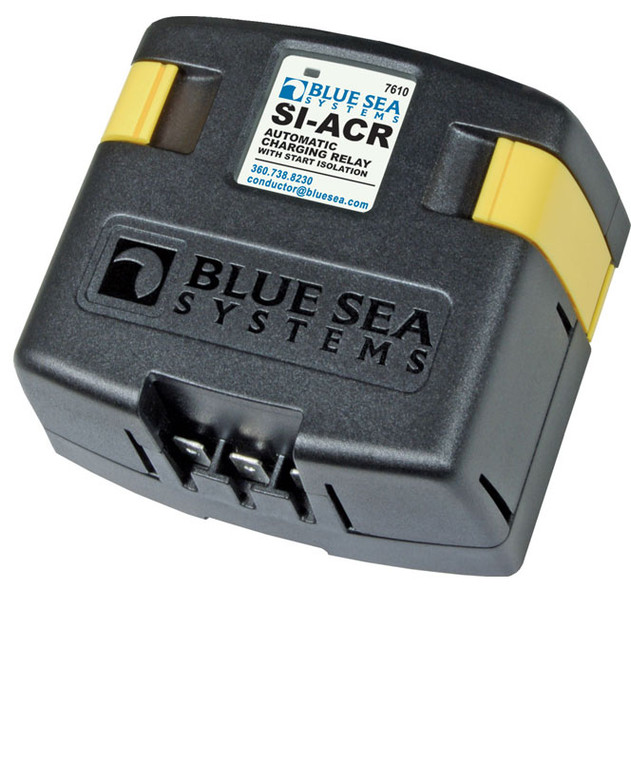

Blue Sea Systems 7610 SI-ACR Automatic Charging Relay - 12/24V DC 120A

Blue Sea Systems 7610 SI-ACR Automatic Charging Relay - 12/24V DC 120A

SI-ACR Automatic Charging Relay - 12/24V DC 120A, rated 120A continuous. Start Isolation allows temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics from sags and spikes.

Features:

• Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
• Designed for 12 or 24 volt systems
• 12/24 volt auto ranging voltage input
• Hermetically sealed contacts/vaporproof
• Ignition protected—safe for installation aboard gasoline powered boats
• Supports high-output alternators up to 120 Amperes
• Remote LED remotely indicates ACR states - requires optional LED

Installation Notes:

• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Cable Size to Meet Ratings: 1/0 AWG

Why Choose This Charger?

• Charges from the boat's own DC system, with no inverter and no shore power
• Keeps phones and electronics alive without a cigarette-lighter adapter hanging loose
• A finished, flush fitting rather than an accessory plugged into a socket
• Built and sealed for the cockpit, not for a car dashboard

Specifications:

• Nominal Voltage: 12V DC 24V DC
• Start Isolation: Yes
• Amperage Operating Current: 175mA (combined) 15mA (open)
• Continuous Rating: 120A
• Intermittent Rating: 210A (5 min)
• Stud Material: Tinned Copper
• Terminal Ring Diameter Clearance: 1.12in (28.45 mm)
• Terminal Stud Length: 0.875in (22.22 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Combine 30 sec: 13.6V @ 12 V 27.2V @ 24 V
• Combine 90 sec: 13.0V @ 12 V 26.0V @ 24 V
• Open 10 sec: 12.35V @ 12 V 24.7V @ 24 V
• Open 30 sec: 12.75V @ 12 V 25.5V @ 24 V
• Open High: 16.0V @ 12 V 30.0V @ 24 V
• Overvoltage Lockout: 16.0V @ 12V 32.0V @ 24V
• Undervoltage Lockout: 9.5V @ 12 V 19V @ 24 V
• Weight: 1.25lb (0.57 kg)
