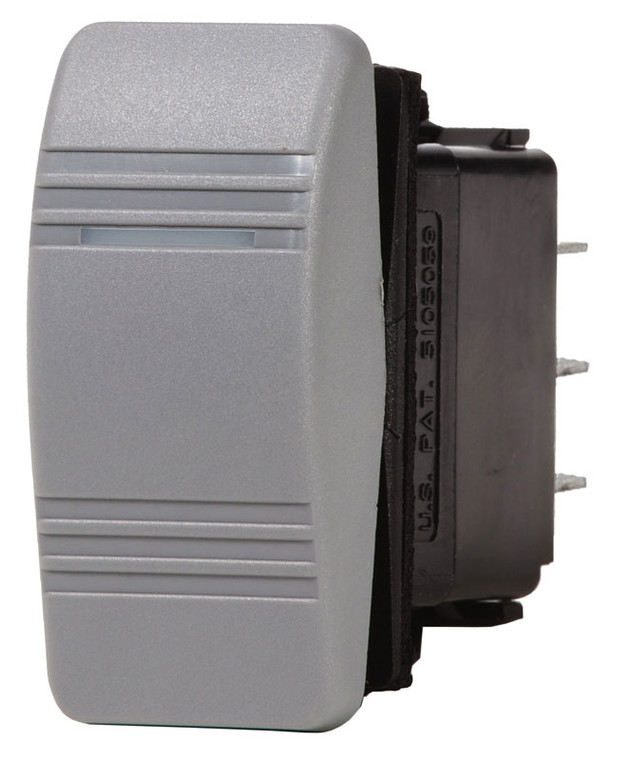

Blue Sea Systems 7944 Contura III Switch SPDT - ON-OFF-(ON)
Blue Sea Systems 7944 Contura III Switch SPDT - ON-OFF-(ON)
Contura III Switch SPDT - ON-OFF-(ON). Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels.
Features:
Why Choose This Switch?
Specifications:
Contura III Switch SPDT - ON-OFF-(ON). Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels.
Features:
- Vibrations, shock, thermoshock, moisture and salt spray resistant
Why Choose This Switch?
- Panel-mount switching built for a marine helm rather than an automotive dash
- Sealed and corrosion-resistant where a household or auto part would fail
- Rated for the real current of the circuit, not just a signal load
- Mounts cleanly in a standard cut-out so the helm stays tidy
Specifications:
- Action: ON-OFF-(ON)
- Pole / Throw: SPDT
- Actuator Color: Gray - Contura III
- Common Applications: bilge pumps
- Maximum Amperage: 20A @ 12V DC 15A @ 24V DC
- Amperage Operating Current: 18mA (LED)
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Actuator Position to Light LED: (ON)
- Embedded LEDs: 1
- Lighting: LED rated 100,000 hours half-life
- Seals: Internal and external gasket panel seal
- Weight: 0.08lb (0.04 kg)
