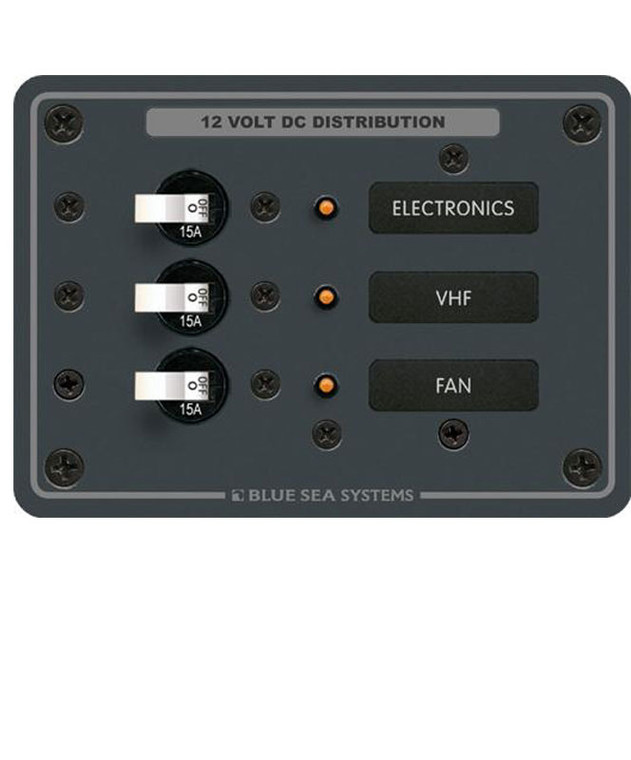

Blue Sea Systems 8025 Traditional Metal DC Panel - 3 Positions

Blue Sea Systems 8025 Traditional Metal DC Panel - 3 Positions

Traditional Metal DC Panel - 3 Positions. All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters).

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Why Choose This Panel?

• Puts switching and circuit protection behind one cut-out instead of scattered devices
• Labelled circuits make a fault quick to isolate at the helm
• A finished, flush installation rather than a hole and a bundle of wires
• Built to marine standards for a damp, vibrating environment

Specifications:

• Positions: 3
• Nominal Voltage: 12V DC 24V DC
• Maximum Amperage: 100A
• Height: 3.75in (95.25 mm)
• Width: 5.25in (133.35 mm)
• Weight: 1.15lb (0.52 kg)
