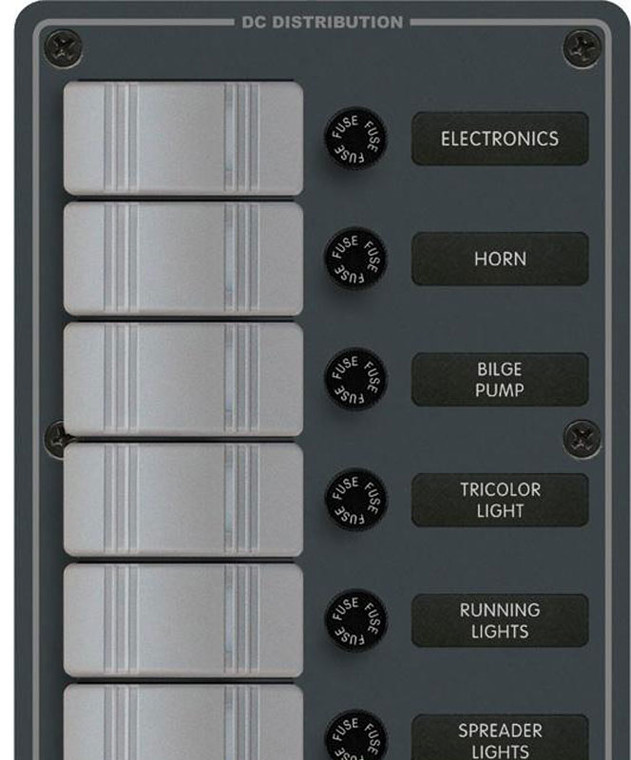

Blue Sea Systems 8053 6 Position-Slate Gray
Blue Sea Systems 8053 6 Position-Slate Gray
6 Position-Slate Gray. Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions.
Features:
Why Choose This Panel?
Specifications:
6 Position-Slate Gray. Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions.
Features:
- ON indicating LEDs embedded in switches
Why Choose This Panel?
- Puts switching and circuit protection behind one cut-out instead of scattered devices
- Labelled circuits make a fault quick to isolate at the helm
- A finished, flush installation rather than a hole and a bundle of wires
- Built to marine standards for a damp, vibrating environment
Specifications:
- Weatherproof: Water Resistant
- Positions: 6
- Nominal Voltage: 12V DC 24V DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A @ 12V DC 15A @ 24V DC
- Height: 7.50in (190.5 mm)
- Width: 5.25in (133.35 mm)
- Depth: 3.00in (76.2 mm)
- Weight: 1.20lb (0.54 kg)
| Manuals and Instructions | 8053 Instructions 8053 Cut Out Template |
|---|---|
| Brand | Blue Sea Systems |
| Cross Reference / Specs | USE WITH: |
