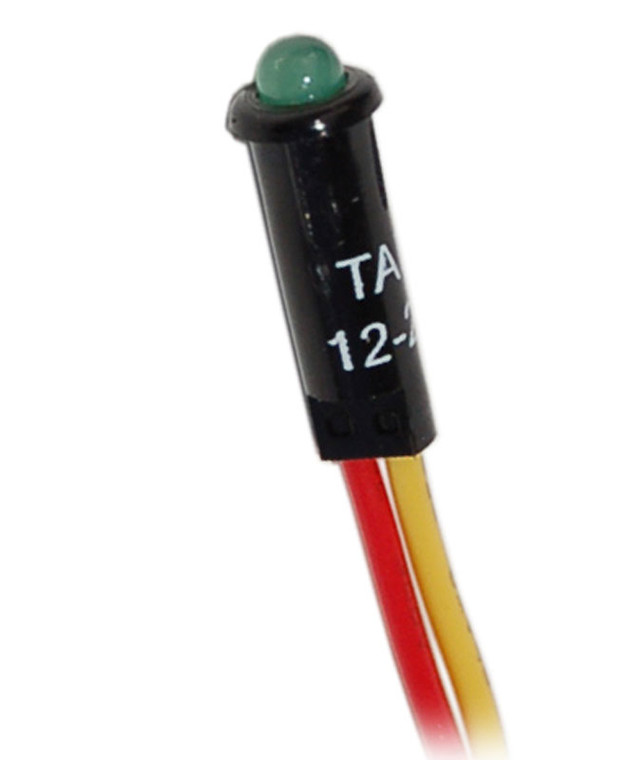

Blue Sea Systems 8172 LED - 12/24V DC Green
Blue Sea Systems 8172 LED - 12/24V DC Green
LED - 12/24V DC Green. Easily installed in any Blue Sea Systems circuit breaker panel.
Features:
Why Choose This Indicator?
Specifications:
LED - 12/24V DC Green. Easily installed in any Blue Sea Systems circuit breaker panel.
Features:
- Simple push-in installation mounts in any thickness material
- Useful as general indicator and alarm lights
Why Choose This Indicator?
- Shows circuit state at a glance, so nothing is left switched on by accident
- LED draws a fraction of the current a filament lamp does
- Sealed for a marine panel rather than an indoor fitting
- Readable at night without lighting up the whole helm
Specifications:
- Nominal Voltage: 12V DC 24V DC
- Circuit: Resistor
- Current: 1.5mA @ 12V 3.0mA @ 24V
- Mounting Hole Diameter: 11/64 in (4.37 mm)
- Power Consumption: 19mW @ 12V 73mW @ 24V
- Wire Gauge: 26
- Weight: 0.03lb (0.01 kg)
