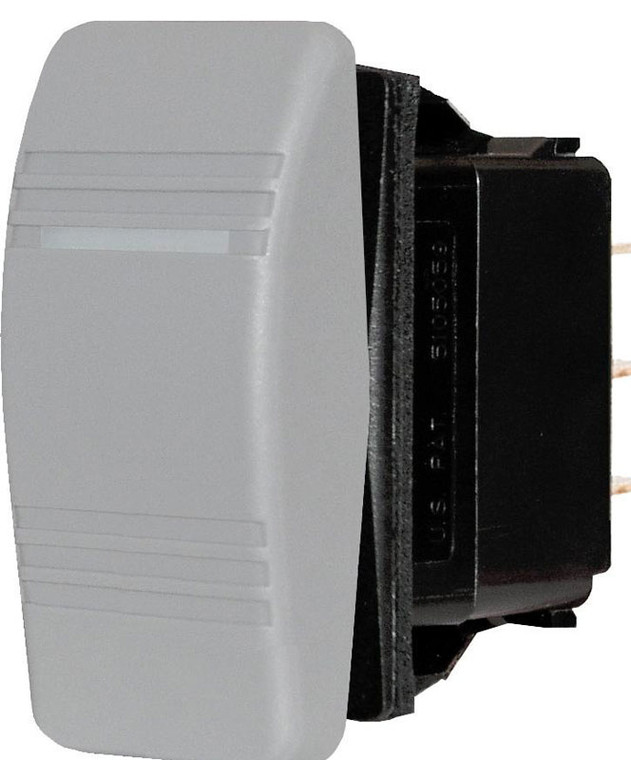

Blue Sea Systems 8234 Contura Switch SPDT Gray - (ON)-OFF-(ON)
Blue Sea Systems 8234 Contura Switch SPDT Gray - (ON)-OFF-(ON)
Contura Switch SPDT Gray - (ON)-OFF-(ON). Specially manufactured for mounting in Blue Sea Systems water resistant panels.
Features:
Why Choose This Switch?
Specifications:
Contura Switch SPDT Gray - (ON)-OFF-(ON). Specially manufactured for mounting in Blue Sea Systems water resistant panels.
Features:
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
Why Choose This Switch?
- Panel-mount switching built for a marine helm rather than an automotive dash
- Sealed and corrosion-resistant where a household or auto part would fail
- Rated for the real current of the circuit, not just a signal load
- Mounts cleanly in a standard cut-out so the helm stays tidy
Specifications:
- Action: (ON)-OFF-(ON)
- Pole / Throw: SPDT
- Actuator Color: Gray - Contura III
- Common Applications: windlass, trim tabs, and powered hatches
- Maximum Amperage: 20A @ 12V 15A @ 24V
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Embedded LEDs: 0
- Seals: Internal and external gasket panel seal
- Weight: 0.09lb (0.04 kg)
| Brand | Blue Sea Systems |
|---|---|
| Cross Reference / Specs |
