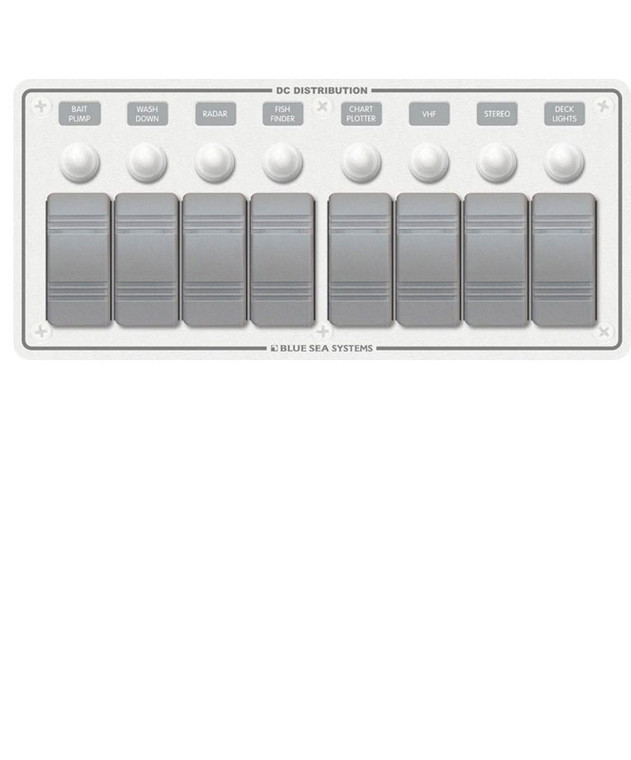

Blue Sea Systems 8271 Contura Water Resistant 12V DC Circuit Breaker Panel - White 8 Position

Blue Sea Systems 8271 Contura Water Resistant 12V DC Circuit Breaker Panel - White 8 Position

Contura Water Resistant 12V DC Circuit Breaker Panel - White 8 Position. Ignition protected—safe for installation aboard gasoline powered boats.

Features:

• Designed for flybridge and open cockpit applications
• Panel front is rated IP66—Protected against powerful water jets
• ON indicating LEDs embedded in switch
• Watertight mounting gasket
• Push Button Reset-Only circuit breakers with waterproof boots

Why Choose This Panel?

• Puts switching and circuit protection behind one cut-out instead of scattered devices
• Labelled circuits make a fault quick to isolate at the helm
• A finished, flush installation rather than a hole and a bundle of wires
• Built to marine standards for a damp, vibrating environment

Specifications:

• Weatherproof: Water Resistant
• Positions: 8
• Nominal Voltage: 12V DC 24V DC
• Panel Cumulative Rating: 90A
• Switch Rating: 20A @ 12V DC 15A @ 24V DC
• Height: 4.25in (107.95 mm)
• Width: 9.37in (238 mm)
• Depth: 3.25in (82.55 mm)
• Weight: 1.75lb (0.79 kg)
