Blue Sea Systems 8374 Water Resistant Circuit Breaker Panel 3 Position-Black

SKU:
BLU8374
|
MPN
8374-BSS
|
UPC:
632085083748
Our Price: $124.99
Current Stock:
1
Adding to cart… The item has been added

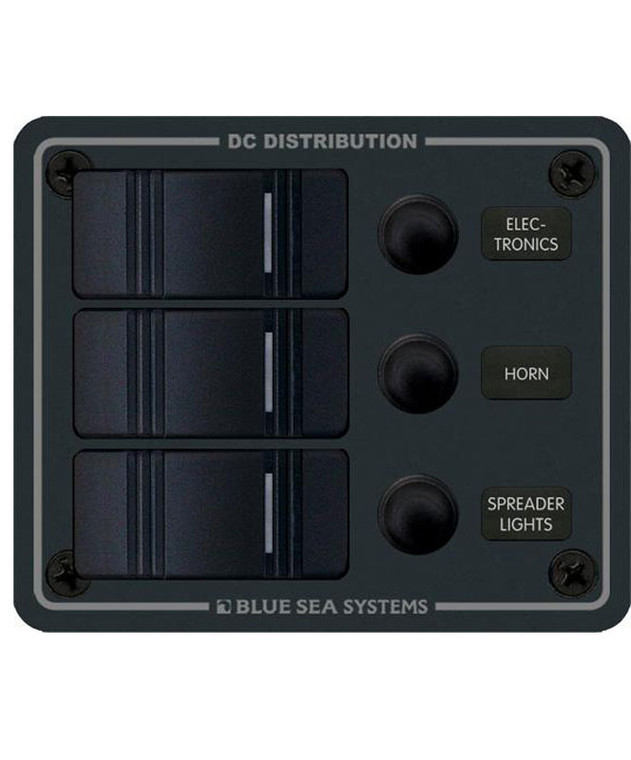

Blue Sea Systems 8374 Water Resistant Circuit Breaker Panel 3 Position-Black

Water Resistant Circuit Breaker Panel 3 Position-Black. Ignition protected—safe for installation aboard gasoline powered boats.

Features:
  • Designed for flybridge and open cockpit applications
  • Panel front is rated IP66—Protected against powerful water jets
  • ON indicating LEDs embedded in switch
  • Watertight mounting gasket
  • Push Button Reset-Only circuit breakers with waterproof boots


Why Choose This Panel?
  • Puts switching and circuit protection behind one cut-out instead of scattered devices
  • Labelled circuits make a fault quick to isolate at the helm
  • A finished, flush installation rather than a hole and a bundle of wires
  • Built to marine standards for a damp, vibrating environment


Specifications:
  • Weatherproof: Water Resistant
  • Positions: 3
  • Nominal Voltage: 12V DC 24V DC
  • Panel Cumulative Rating: 45A
  • Switch Rating: 20A @ 12V DC 15A @ 24V DC
  • Height: 3.75in (95.25 mm)
  • Width: 4.50in (114.3 mm)
  • Depth: 3.25in (82.55 mm)
  • Weight: 0.75lb (0.34 kg)
Manuals and Instructions 8374 Instructions 8374 Cutout Template
