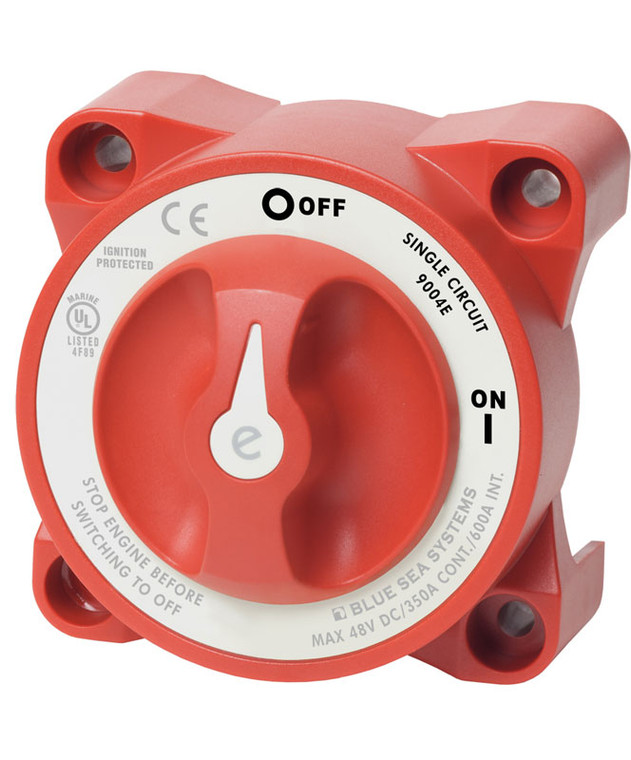

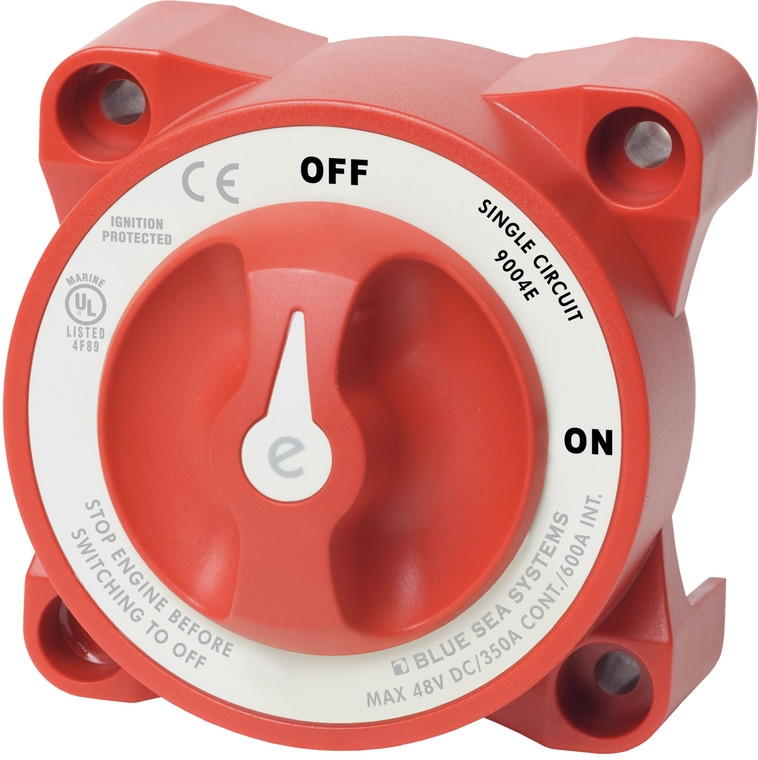

Blue Sea Systems 9004E e-Series On-Off Battery Switch

Blue Sea Systems 9004E e-Series On-Off Battery Switch

e-Series On-Off Battery Switch, rated 350A continuous to a maximum of 48V DC. Ignition protected—safe for installation aboard gasoline powered boats.

Features:

• Includes AFD (Alternator Field Disconnect)
• Case design allows surface or rear panel mounting

Installation Notes:

• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept 1/4" (M6) Screw

Why Choose This Battery Switch?

• Isolates the bank for safe service and for leaving the boat unattended
• Protects against a dead start battery by keeping banks separate in normal use
• Rated for the cranking surge an engine draws, not just the running load
• A standard, inspectable point of disconnect that a surveyor expects to find

Specifications:

• Switch Type: Single Circuit ON-OFF
• Color: Red
• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: Yes
• Maximum Voltage: 48V DC
• Continuous Rating: 350A
• Intermittent Rating: 600A (5 min)
• Starting Rating 30 sec: 1200A
• Battery Inputs: 1
• Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
• Stud Material: Tinned Copper
• Switching Rating: 25A
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 0.95lb (0.43 kg)
