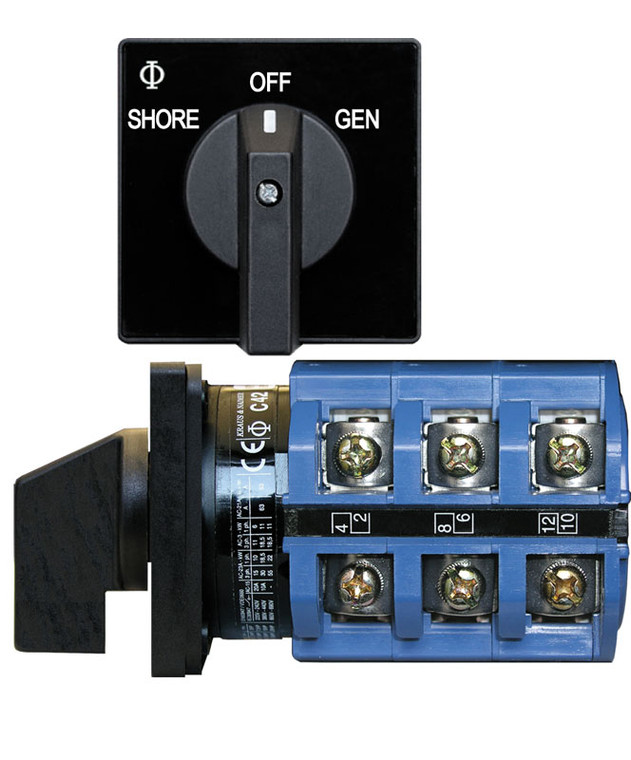

Blue Sea Systems 9019 AC Rotary Switch - OFF + 2 Positions 240V AC 65A

Blue Sea Systems 9019 AC Rotary Switch - OFF + 2 Positions 240V AC 65A

AC Rotary Switch - OFF + 2 Positions 240V AC 65A, to a maximum of 600V AC. Allows connecting one of two different AC sources to one circuit.

Features:

• Switches 2 - 120/240 Volt AC sources
• Compact solution when circuit protection is provided elsewhere
• Mounts in panels up to 0.16" (4.00mm) thick
• Heavy duty industrial rated switch
• Intuitive function - One hand operation

Why Choose This Switch?

• Panel-mount switching built for a marine helm rather than an automotive dash
• Sealed and corrosion-resistant where a household or auto part would fail
• Rated for the real current of the circuit, not just a signal load
• Mounts cleanly in a standard cut-out so the helm stays tidy

Specifications:

• Positions: 2 + OFF
• Source Selection: 2
• Nominal Voltage: 240V
• Poles: 3
• Load Circuits Out: 1
• Maximum Amperage: 65A
• Maximum Voltage: 600V AC
• Source In: 2
• Height: 2.52in (64.01 mm)
• Width: 2.52in (64.01 mm)
• Depth: 3.5in (88.9 mm)
• Weight: 1.41lb (0.64 kg)
