Blue Sea Systems 1002 CableClam 0.83"
Blue Sea Systems 1002 CableClam 0.83"

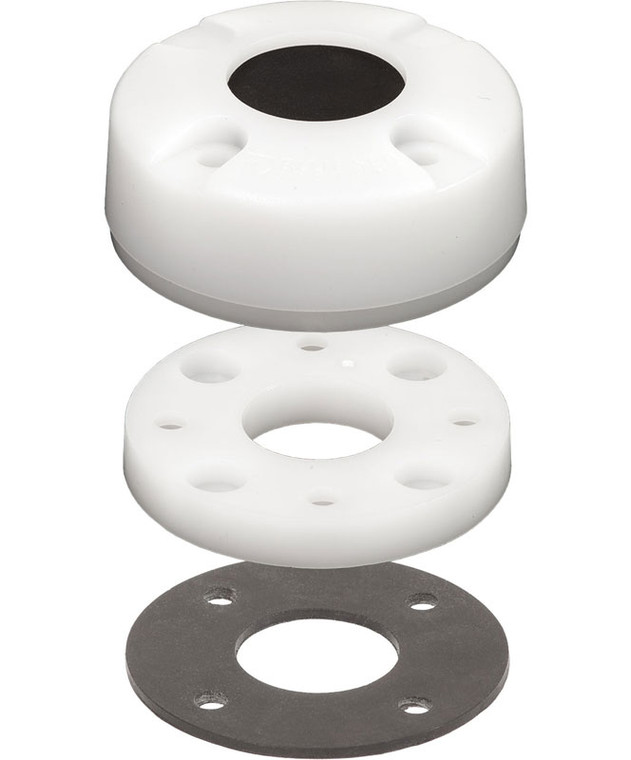

CableClam 0.83". Waterproof co-axial installation without removing connectors.
Features:
Why Choose a Cable Gland?
Specifications:
CableClam 0.83". Waterproof co-axial installation without removing connectors.
Features:
- Perfect for antenna installation
- Save the expense of removing and replacing connectors
- Avoid poor connections from removing factory connectors
- For use above the waterline only
Why Choose a Cable Gland?
- Seals the cable where it passes through a deck, bulkhead or enclosure
- Stops the slow water ingress that ruins connectors and wiring from the inside
- A proper fitting instead of sealant squeezed around a drilled hole
- Keeps the cable supported so movement does not work the connection loose
Specifications:
- Max Cable Diameter: 0.44in (11.18 mm)
- Max Connector Diameter: 0.83in (21.08 mm)
- Body Material: Acetal
- Ring Material: UV-Stabilized Thermoplastic
- Screws: Stainless Steel
- Seal Material: UV-Stabilized Buna-N Rubber
- Weight: 0.20lb (0.09 kg)
| Manuals and Instructions | 1002 Instructions 1002 Dimensioned Drawing |
|---|---|
| Brand | Blue Sea Systems |
