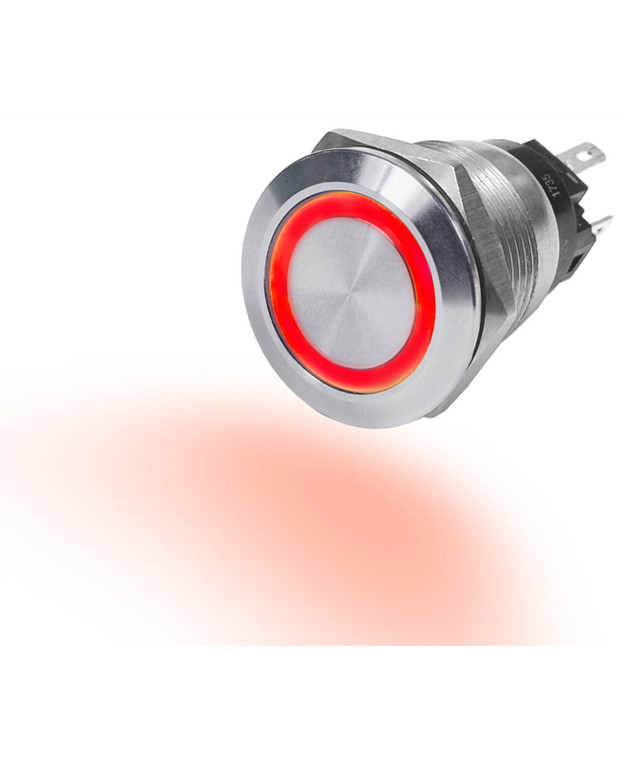

Blue Sea Systems 4162 10A Push Button LED Ring Switch OFF-ON Red
Blue Sea Systems 4162 10A Push Button LED Ring Switch OFF-ON Red
10A Push Button LED Ring Switch OFF-ON Red. Installs with .110inch quick connects (included in retail package).
Features:
Why Choose This Switch?
Specifications:
10A Push Button LED Ring Switch OFF-ON Red. Installs with .110inch quick connects (included in retail package).
Features:
- Single Pole Double Throw or Single Pole Single Throw
- Can be wired for normally open or normally closed
- Available in momentary and non-momentary
Why Choose This Switch?
- Panel-mount switching built for a marine helm rather than an automotive dash
- Sealed and corrosion-resistant where a household or auto part would fail
- Rated for the real current of the circuit, not just a signal load
- Mounts cleanly in a standard cut-out so the helm stays tidy
Specifications:
- Action: OFF-ON
- Amperage: 10A @ 12V DC Resistive 3A @ 12V Inductive
- Nominal Voltage: 12V DC
- Maximum LED Operating Current: 20mA
- Minimum Operating Temperature: -30° C
- Maximum Operating Temperature: 70° C
- Minimum Storage Temperature: -55° C
- Maximum Storage Temperature: 85° C
- Illumination: Independent – Separate contacts for LED power
- Max Panel Thickness: 0.31in (7.87 mm)
- Mounting Hole: ¾” (19mm)
- Switching Cycles: 40,000
- Termination: 5 – 0.110inch Quick Connect terminals
- Weight: 0.20lb (0.09 kg)
| Manuals and Instructions | Dimensioned Drawing Sales Sheet |
|---|---|
| Brand | Blue Sea Systems |
