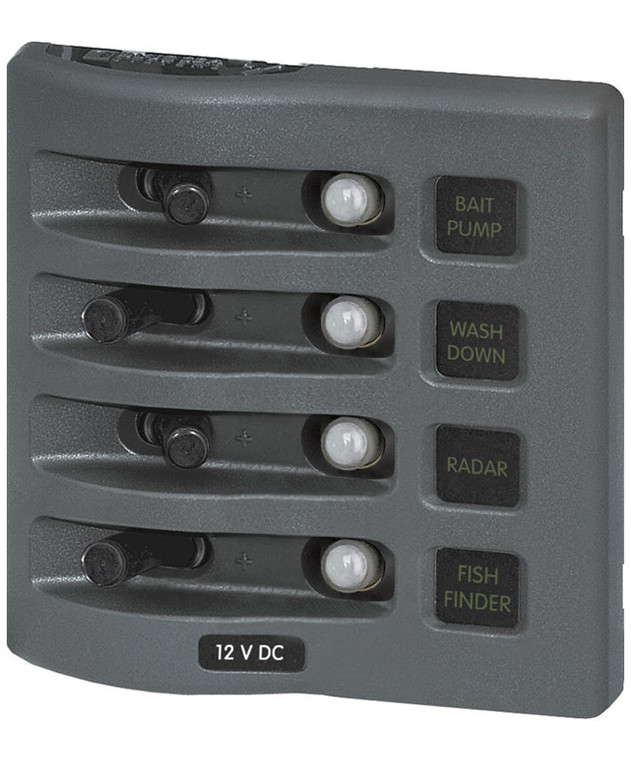

Blue Sea Systems 4374 WeatherDeck 12V DC Waterproof Circuit Breaker Panel - Gray 4 Positions

Blue Sea Systems 4374 WeatherDeck 12V DC Waterproof Circuit Breaker Panel - Gray 4 Positions

WeatherDeck 12V DC Waterproof Circuit Breaker Panel - Gray 4 Positions. Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Features:

• Rated IP67-temporary immersion for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• Available in 4 and 6 circuit models
• Each panel can be mounted in four different orientations

Why Choose This Panel?

• Puts switching and circuit protection behind one cut-out instead of scattered devices
• Labelled circuits make a fault quick to isolate at the helm
• A finished, flush installation rather than a hole and a bundle of wires
• Built to marine standards for a damp, vibrating environment

Specifications:

• Weatherproof: Waterproof
• Positions: 4
• Nominal Voltage: 12V DC 24V DC
• Circuit Protection: Circuit Breaker
• Maximum Amperage: 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit)
• Panel Cumulative Rating: 45A
• Backlit Label: Green LED
• Backlighting Amperage: 10mA /Illuminated Circuit
• Backlighting Voltage: 12 or 24V DC
• Material: Reinforced Polycarbonate
• Height: 4.30in (109.22 mm)
• Width: 4.25in (107.95 mm)
• Depth: 3.50in (88.9 mm)
• Weight: 0.97lb (0.44 kg)
