Blue Sea Systems 4378 WeatherDeck½ 12V DC Waterproof Circuit Breaker Panel

SKU:
BLU4378
|
MPN
4378-BSS
|
UPC:
632085043780
Our Price: $193.29
Current Stock:
1
Adding to cart… The item has been added

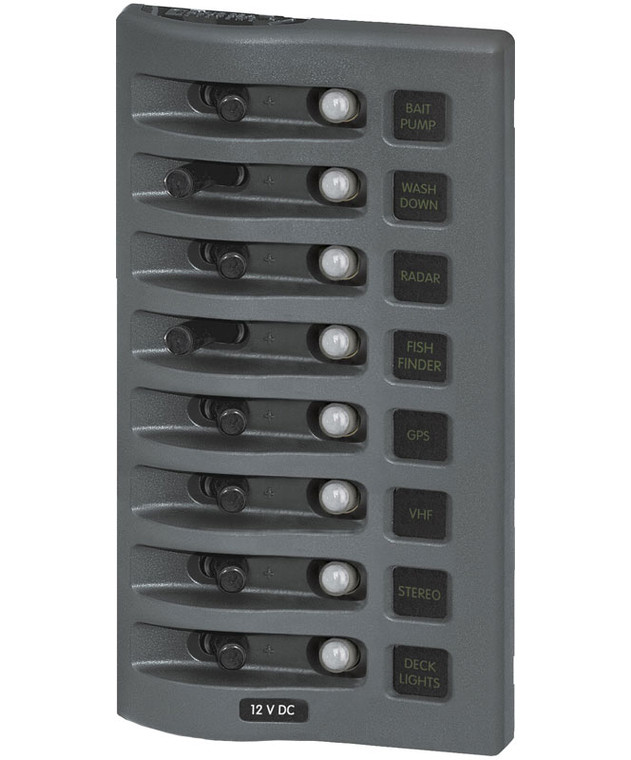

Blue Sea Systems 4378 WeatherDeck® 12V DC Waterproof Circuit Breaker Panel



FEATURES
  • Rated IP67-temporary immersion for 30 minutes

  • Designed for flybridge and open cockpit applications

  • Independent label backlighting allows switching and dimming

  • Compatible with all Blue Sea Systems Digital Dimmers

  • Each panel can be mounted in four different orientations

  • Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

  • Weatherproof: Waterproof

  • Color: Grey

  • Positions: 8

  • Nominal Voltage: 12V DC, 24V DC

  • Circuit Protection: Circuit Breaker

  • Maximum Amperage: 15A @ 12V DC (per circuit), 9A @ 24V DC (per circuit)

  • Panel Cumulative Rating: 45A

  • Backlighting Amperage: 10mA /Illuminated Circuit

  • Backlighting Voltage: 12 or 24V DC

  • Material: Reinforced Polycarbonate

  • Height: 7.70in (195.58 mm)

  • Width: 4.25in (107.95 mm)

  • Depth: 3.50in (88.9 mm)
    • Brand Blue Sea Systems
    Cross Reference / Specs

    INCLUDES
  • (8) - 4135 Push Button Reset Only Circuit Breaker Boot - Clear
  • (8) - 4138 WeatherDeck® Toggle Switch Boot - Black
  • (8) - 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
  • (1) - 4215 Waterproof DC Label Kit - 30 Black Square Labels V1 [LABEL]
  • (8) - 7056 Push Button Reset Only Quick Connect Circuit Breaker -15 Amps
    		•
