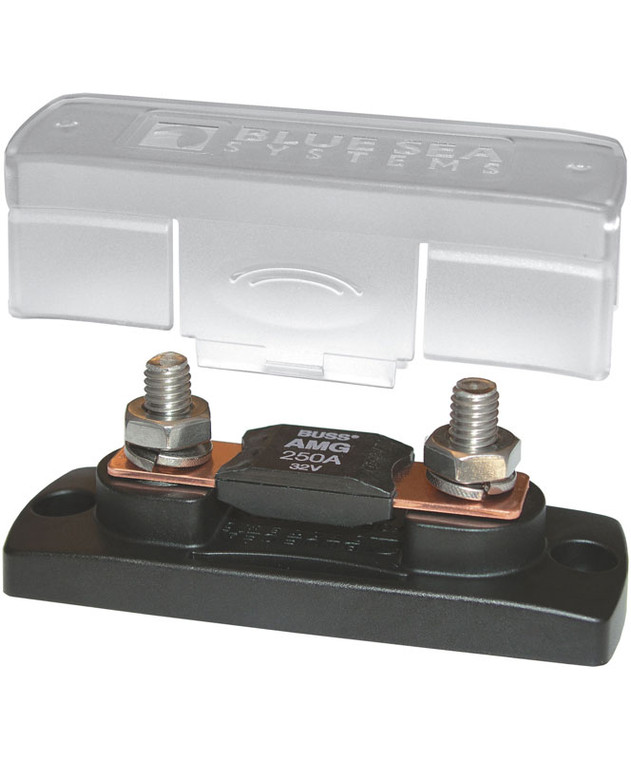

Blue Sea Systems 5001 MEGA / AMG Fuse Block - 100-300A with Cover

Blue Sea Systems 5001 MEGA / AMG Fuse Block - 100-300A with Cover

MEGA / AMG Fuse Block - 100-300A with Cover, to a maximum of 32V DC. Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact.

Features:

• Accepts 5/16" (M8) ring terminals
• Insulating cover satisfies ABYC/USCG insulation requirements
• Insulating cover breakouts allow wire access in three directions
• Insert molded studs ensure secure fuse mounting
• UL 94-V0 base resists high heat

Installation Notes:

• Stud Torque: 120 in-lb (13.56 Nm)

Why Choose This Fuse Block?

• Puts the circuit protection in one place instead of inline fuses buried in the harness
• Makes a blown fuse quick to find and quick to change
• Keeps every branch circuit labelled and traceable at one point
• Built for the vibration and damp a boat sees, unlike an automotive block

Specifications:

• Maximum Voltage: 32V DC
• Stud Size: 5/16"
• Base Material: Reinforced PBT
• Cover Material: Polycarbonate
• Maximum Terminal Torque: 110 in-lb (12.43 Nm)
• Weight: 0.35lb (0.16 kg)
