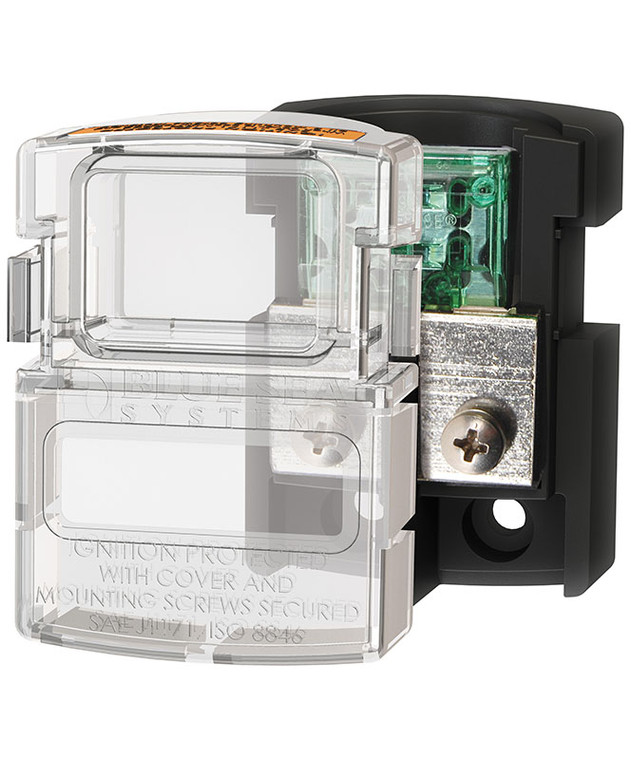

Blue Sea Systems 5006100 MAXI Fuse Block

SKU:
BLU5006100
|
MPN
5006100-BSS
|
UPC:
632085500610
Our Price: $37.99
Current Stock:
2
Adding to cart… The item has been added
Blue Sea Systems 5006100 MAXI Fuse Block

MAXI Fuse Block, to a maximum of 32V DC. Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements.

Features:
  • Cover breakouts allow wires from sides or bottom
  • Terminal screws compress fuse blades within blocks for low resistance connections
  • Label recess accepts large format label


Installation Notes:
  • Screw Terminal Torque: 25 in-lb (2.82 Nm)
  • Wire Size: 14 - 4 AWG


Why Choose This Fuse Block?
  • Puts the circuit protection in one place instead of inline fuses buried in the harness
  • Makes a blown fuse quick to find and quick to change
  • Keeps every branch circuit labelled and traceable at one point
  • Built for the vibration and damp a boat sees, unlike an automotive block


Specifications:
  • Maximum Amperage: 80A
  • Maximum Voltage: 32V DC
  • Mounting: #10 Screws
  • Weight: 0.25lb (0.11 kg)
Manuals and Instructions Instructions Dimensioned Drawing
Brand Blue Sea Systems
Cross Reference / Specs BLUE SEA SYSTEMS
  • 5006


    • USE WITH:
  • 5138 - 30A Maxi Fuse
  • 5139 - 40A Maxi Fuse
  • 5140 - 50A Maxi Fuse
  • 5141 - 60A Maxi Fuse
  • 5142 - 70A Maxi Fuse
  • 5143 - 80A Maxi Fuse
    		•
