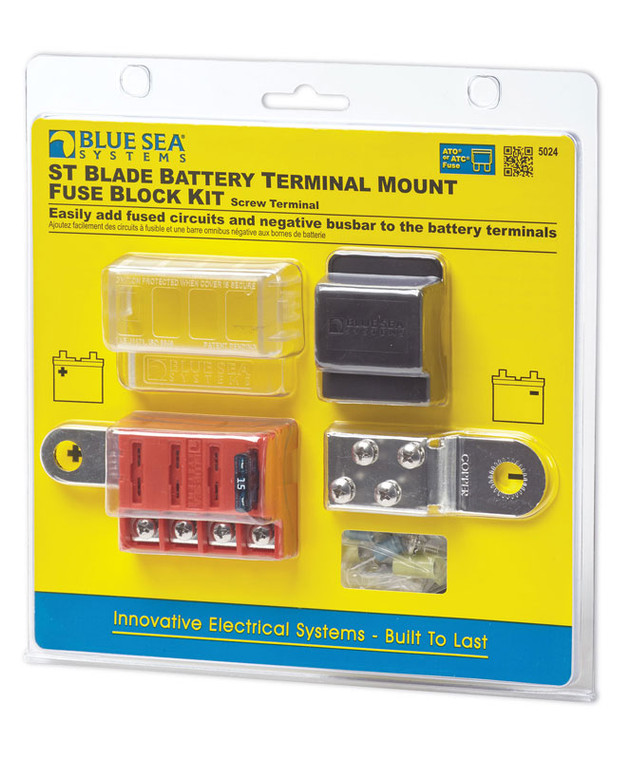

Blue Sea Systems 5024 ST Blade Battery Terminal Mount Fuse Block Kit

Blue Sea Systems 5024 ST Blade Battery Terminal Mount Fuse Block Kit

ST Blade Battery Terminal Mount Fuse Block Kit, to a maximum of 32V DC. Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment.

Features:

• Mounts on the battery terminal stud
• Screw terminals for securing wires
• Nylon insulated ring terminals included for each screw terminal
• Accepts small format circuit labels
• Insulating cover meets ABYC/USCG insulation requirements
• Includes a 4-circuit negative busbar
• Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals

Installation Notes:

• Screw Terminal Torque: 18 in-lb (2.03 Nm)

Why Choose This Fuse Block?

• Puts the circuit protection in one place instead of inline fuses buried in the harness
• Makes a blown fuse quick to find and quick to change
• Keeps every branch circuit labelled and traceable at one point
• Built for the vibration and damp a boat sees, unlike an automotive block

Specifications:

• Circuits: 4
• Maximum Amperage: 100A per block 30A per circuit
• Maximum Voltage: 32V DC
• Bus Material: Tin-Plater Copper C11000
• Mounting Hole: 3/8" (M10) Stud
• Screw Terminal Type: #8-32
• Weight: 0.50lb (0.23 kg)
