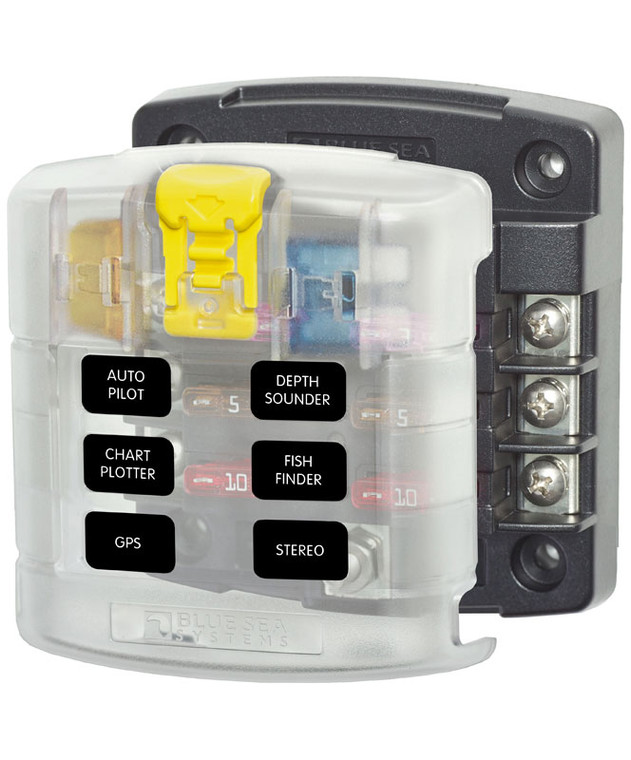

Blue Sea Systems 5028 ST Blade Fuse Block - 6 Circuits with Cover
Blue Sea Systems 5028 ST Blade Fuse Block - 6 Circuits with Cover
ST Blade Fuse Block - 6 Circuits with Cover, to a maximum of 32V DC. Fuse blocks with covers include 20 write-on circuit labels.
Features:
Installation Notes:
Why Choose This Fuse Block?
Specifications:
ST Blade Fuse Block - 6 Circuits with Cover, to a maximum of 32V DC. Fuse blocks with covers include 20 write-on circuit labels.
Features:
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
Installation Notes:
- Screw Terminal Torque: 18 in-lb (2.03 Nm)
Why Choose This Fuse Block?
- Puts the circuit protection in one place instead of inline fuses buried in the harness
- Makes a blown fuse quick to find and quick to change
- Keeps every branch circuit labelled and traceable at one point
- Built for the vibration and damp a boat sees, unlike an automotive block
Specifications:
- Circuits: 6
- Maximum Amperage: 100A per block 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4)
- Positive Bus: #10-32 Stud
- Recommended Torque: 24 in-lb (2.71 N·m)
- Screw Terminal Type: #8-32 Screws with captive star lock washer
- Weight: 0.42lb (0.19 kg)
