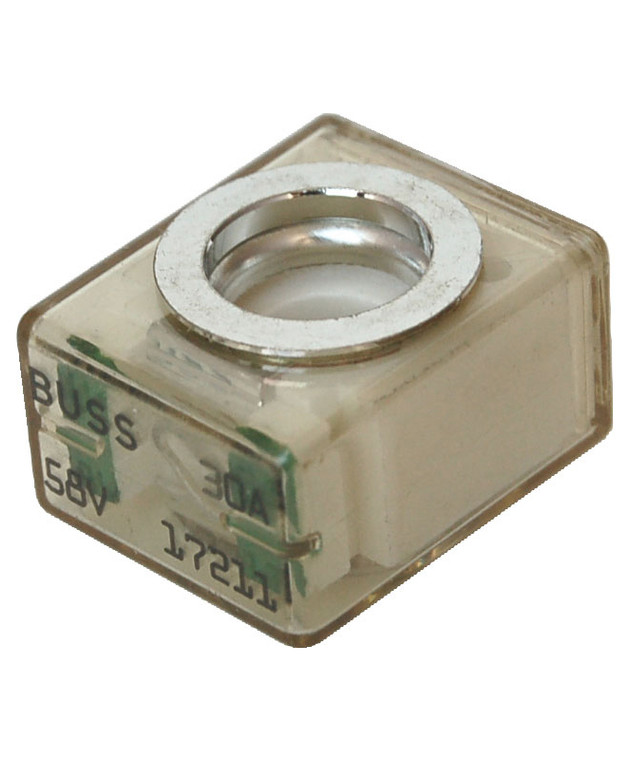

Blue Sea Systems 5175 MRBF Terminal Fuse - 30A
Blue Sea Systems 5175 MRBF Terminal Fuse - 30A
MRBF Terminal Fuse - 30A, to a maximum of 58V DC. Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151—do not mount the fuse directly to the battery terminal.
Features:
Why Choose This Fuse Block?
Specifications:
MRBF Terminal Fuse - 30A, to a maximum of 58V DC. Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151—do not mount the fuse directly to the battery terminal.
Features:
- Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
- Ignition protected—safe for installation aboard gasoline powered boats
- Clear window—visual indication of blown condition
- Color coded for each amperage
Why Choose This Fuse Block?
- Puts the circuit protection in one place instead of inline fuses buried in the harness
- Makes a blown fuse quick to find and quick to change
- Keeps every branch circuit labelled and traceable at one point
- Built for the vibration and damp a boat sees, unlike an automotive block
Specifications:
- Amperage: 30A
- Ignition Protected: Yes
- Maximum Voltage: 58V DC
- Interrupt Capacity: 10000A @ 14V DC 5000A @ 32V DC 2000A @ 58V DC
- Weight: 0.06lb (0.03 kg)
| Manuals and Instructions | 5175 Fuse Comparison Chart |
|---|---|
| Brand | Blue Sea Systems |
| Cross Reference / Specs | USE WITH: |
