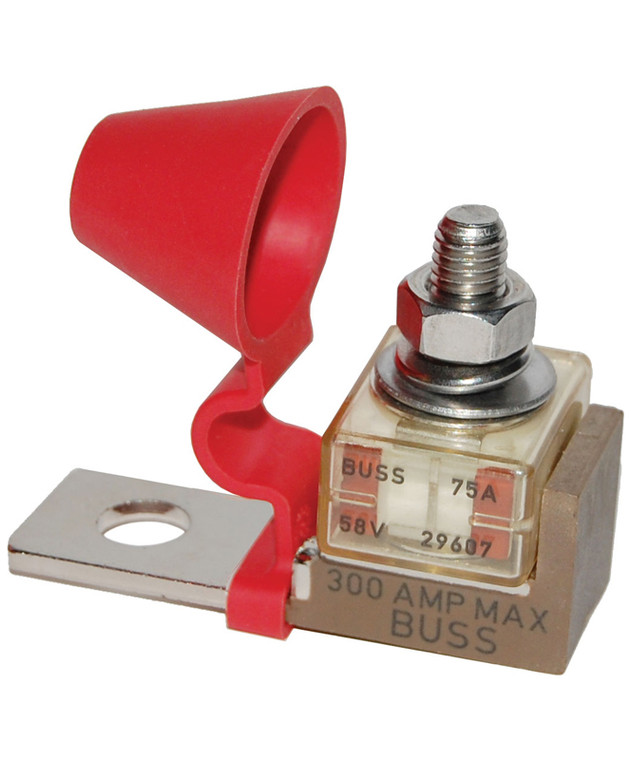

Blue Sea Systems 5191 MRBF Terminal Fuse Block - 30 to 300A
Blue Sea Systems 5191 MRBF Terminal Fuse Block - 30 to 300A
MRBF Terminal Fuse Block - 30 to 300A, to a maximum of 58V DC. Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection.
Features:
Why Choose This Fuse Block?
Specifications:
MRBF Terminal Fuse Block - 30 to 300A, to a maximum of 58V DC. Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection.
Features:
- Provides high current protection in tight space constraints
- Ignition protected when used with Blue Sea Systems' MRBF Terminal Fuse
- Isolated stud design uses standard M8 hardware and permits stacking of terminals
- Insulating cap prevents accidental shorts
- Accepts 5/16" ring terminals
- Mounts on 3/8" terminal studs
Why Choose This Fuse Block?
- Puts the circuit protection in one place instead of inline fuses buried in the harness
- Makes a blown fuse quick to find and quick to change
- Keeps every branch circuit labelled and traceable at one point
- Built for the vibration and damp a boat sees, unlike an automotive block
Specifications:
- Ignition Protected: No
- Maximum Amperage: 300A
- Maximum Voltage: 58V DC
- Terminal Stud: M8 (5/16")
- Maximum Torque: 75 in-lb (8.47 Nm)
- Weight: 0.16lb (0.07 kg)
| Brand | Blue Sea Systems |
|---|---|
| Cross Reference / Specs | USE WITH: |
