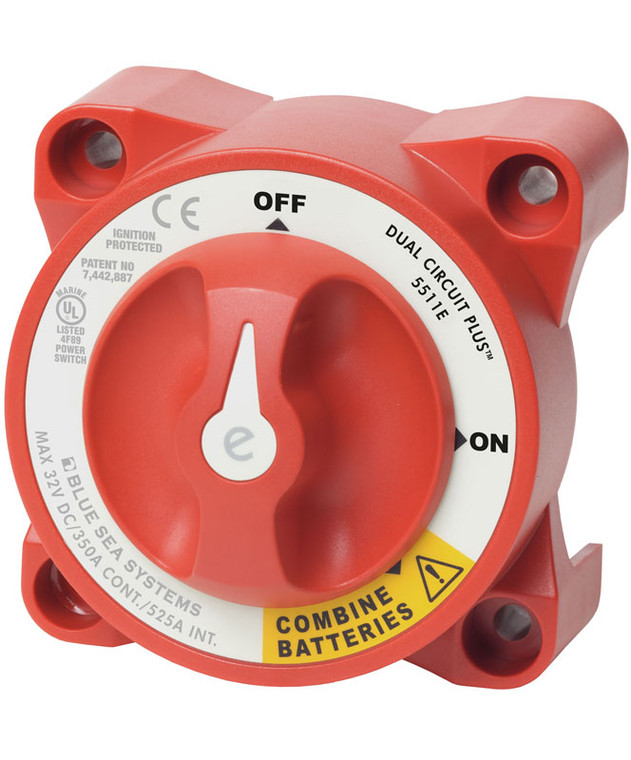

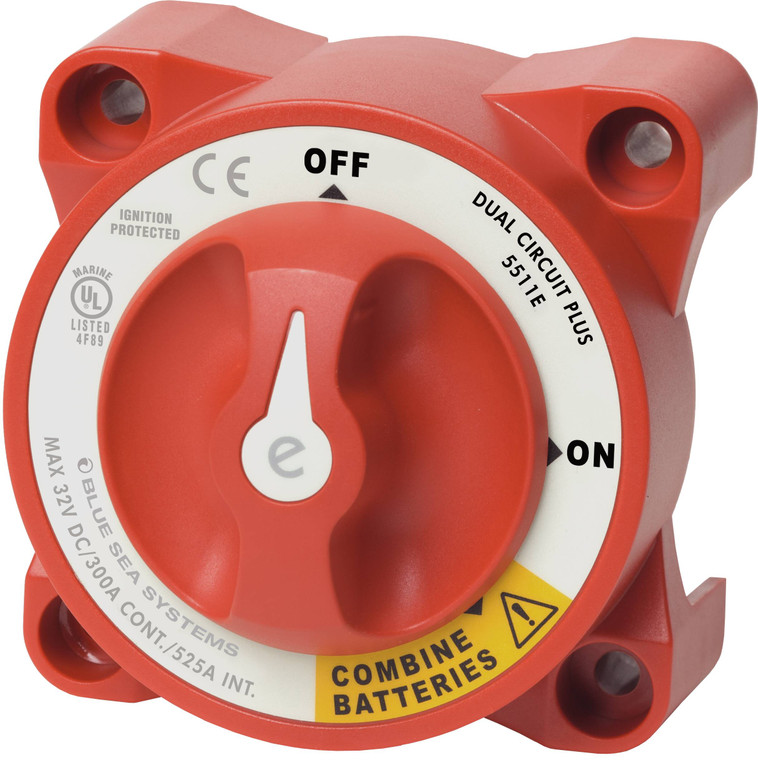

Blue Sea Systems 5511E e-Series Dual Circuit Plus Battery Switch

Blue Sea Systems 5511E e-Series Dual Circuit Plus Battery Switch

e-Series Dual Circuit Plus Battery Switch, rated 350A continuous to a maximum of 32V DC. Make-before-break contact design allows switching without power interruption.

Features:

• Ignition protected—safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting

Installation Notes:

• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept 1/4" (M6) Screw

Why Choose This Battery Switch?

• Isolates the bank for safe service and for leaving the boat unattended
• Protects against a dead start battery by keeping banks separate in normal use
• Rated for the cranking surge an engine draws, not just the running load
• A standard, inspectable point of disconnect that a surveyor expects to find

Specifications:

• Switch Type: Dual Circuit Plus
• Color: Red
• Switch Positions: 3
• Battery Combine: Yes
• Alternator Field Disconnect: No
• Maximum Voltage: 32V DC
• Continuous Rating: 350A
• Intermittent Rating: 525A (5 min)
• Starting Rating 30 sec: 700A per circuit
• Battery Inputs: 2
• Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
• Stud Material: Tinned Copper
• Switching Rating: 25A
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 1.16lb (0.53 kg)
