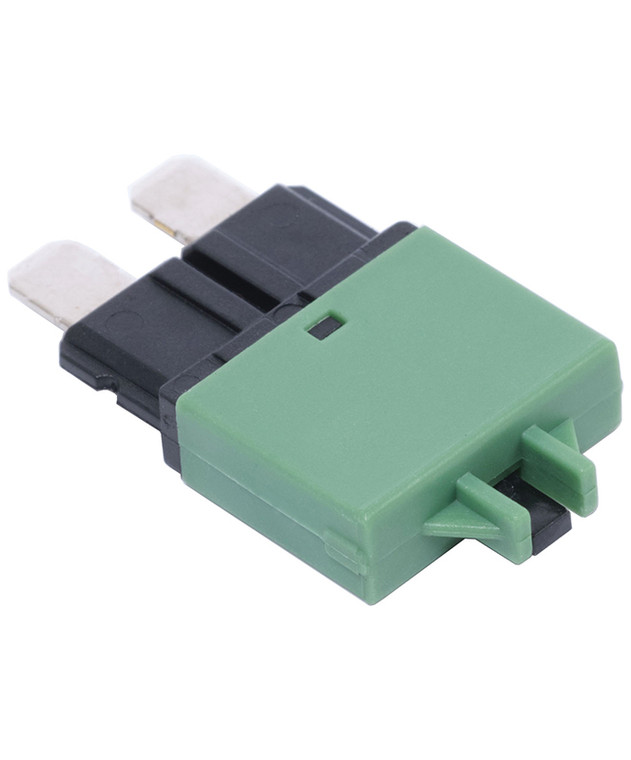

Blue Sea Systems 7068 ATO/ATC-Style Low Profile - 30A
Blue Sea Systems 7068 ATO/ATC-Style Low Profile - 30A
ATO/ATC-Style Low Profile - 30A, to a maximum of 32V DC. Manual push button reset complies with ABYC circuit protection requirements.
Features:
Why Choose This Fuse Block?
Specifications:
ATO/ATC-Style Low Profile - 30A, to a maximum of 32V DC. Manual push button reset complies with ABYC circuit protection requirements.
Features:
- Drop in replacement for ATO and ATC blade style fuses
- Compatible with Water-Resistant ST-Blade Fuse Block with cover secured
- Compatible with all other ST-Blade Fuse blocks without cover
Why Choose This Fuse Block?
- Puts the circuit protection in one place instead of inline fuses buried in the harness
- Makes a blown fuse quick to find and quick to change
- Keeps every branch circuit labelled and traceable at one point
- Built for the vibration and damp a boat sees, unlike an automotive block
Specifications:
- Amperage: 30A
- Color: Green
- Maximum Voltage: 32V DC
- Circuit Breaker Type: Thermal trip, manual reset
- Interrupt Capacity: 2000A @ 28V DC
- Minimum Operating Temperature: -30° C
- Maximum Operating Temperature: 77° C
| Manuals and Instructions | 7068 Sales Sheet |
|---|---|
| Brand | Blue Sea Systems |
| Cross Reference / Specs | USE WITH: |
