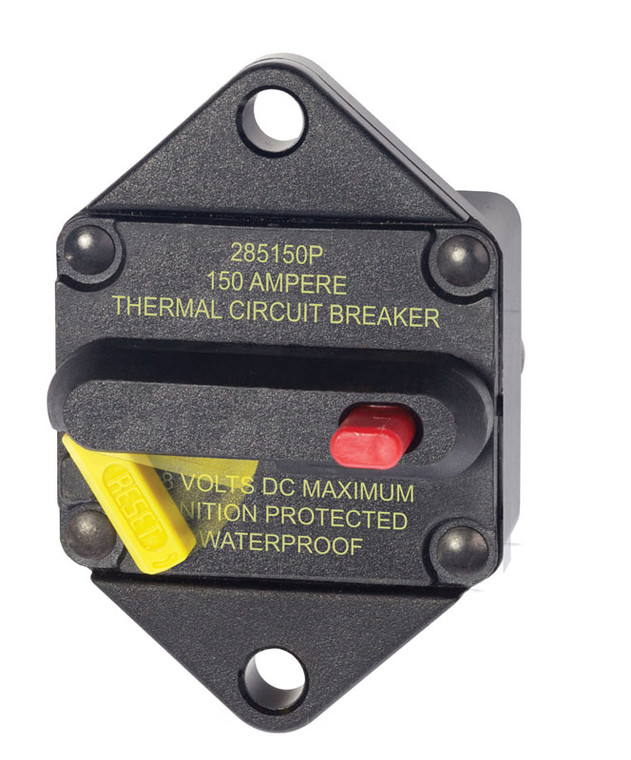

Blue Sea Systems 7089 285-Series Circuit Breaker - Panel Mount 150A

Blue Sea Systems 7089 285-Series Circuit Breaker - Panel Mount 150A

285-Series Circuit Breaker - Panel Mount 150A, to a maximum of 48V DC. Ignition protected - Safe for installation aboard gasoline powered boats.

Features:

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Meets SAE J1171 external ignition protection requirements
• Combines switching and circuit breaker function into one unit*
• "Trip Free" - cannot be held closed after trip

Installation Notes:

• Terminal Stud Torque: 50 in-lb (5.65 Nm)

Why Choose This Panel?

• Puts switching and circuit protection behind one cut-out instead of scattered devices
• Labelled circuits make a fault quick to isolate at the helm
• A finished, flush installation rather than a hole and a bundle of wires
• Built to marine standards for a damp, vibrating environment

Specifications:

• Amperage: 150A
• Maximum Voltage: 48V DC
• Mounting: Panel Mount
• Circuit Breaker Type: Thermally responsive Bi-metal blade
• Terminal Stud: M6 (accepts 1/4" Ring Terminal)
• Interrupt Capacity: 3000A @ 48V
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Circuit Breaker Class: Type III - switchable/manual reset - trip free
• Weight: 0.50lb (0.23 kg)
