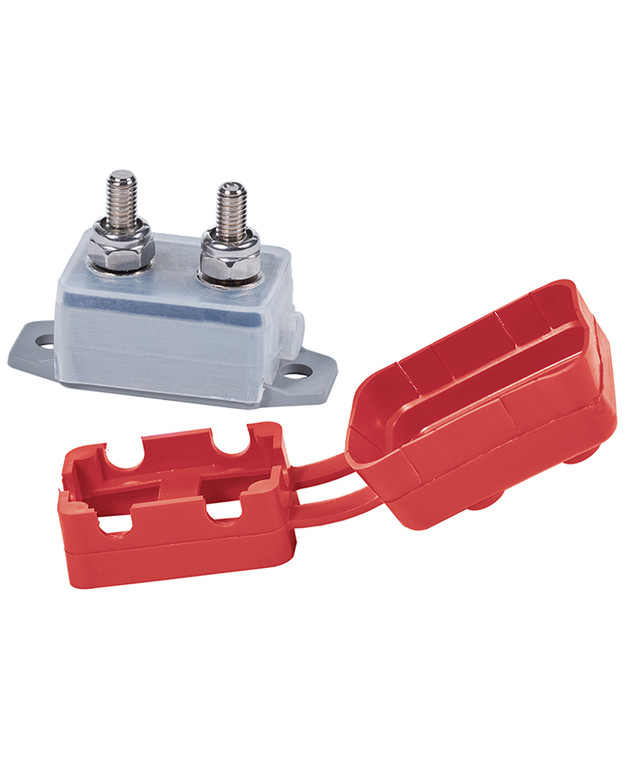

Blue Sea Systems 7155 Marine Grade Short Stop Circuit Breakers - 30A

Blue Sea Systems 7155 Marine Grade Short Stop Circuit Breakers - 30A

Marine Grade Short Stop Circuit Breakers - 30A, to a maximum of 28V DC. IP64 water resistant boot protects against dust and splashing water.

Features:

• Corrosion resistant materials to withstand harsh environments
• Push-to-reset operation only disconnects when tripped
• Stainless steel lock nuts for secure connections
• Red insulating boot included (retail product only)

Installation Notes:

• Terminal Stud Torque: 20 in-lb (2.26 Nm)

Why Choose a Resettable Circuit Breaker?

• Resets by hand after a fault, so there are no spare fuses to carry or lose
• Shows the fault instead of hiding it, so a tripped circuit is obvious at the panel
• Sized for marine DC and AC loads rather than an automotive accessory circuit
• Protects the wiring, not just the device on the end of it

Specifications:

• Amperage: 30A DC
• Maximum Voltage: 28V DC
• Circuit Breaker Type: Thermal trip, manual reset
• Terminal Stud: #10-32
• Interrupt Capacity: 2500A @ 28V DC
• Minimum Operating Temperature: -10° C
• Maximum Operating Temperature: 60° C
• Weight: 0.06lb (0.03 kg)
