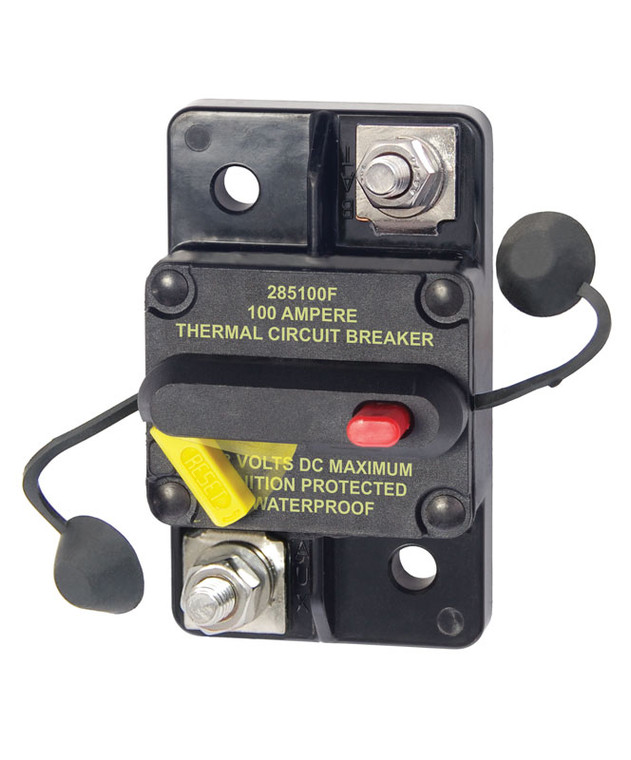

Blue Sea Systems 7187 285-Series Circuit Breaker - Surface Mount 100A

Blue Sea Systems 7187 285-Series Circuit Breaker - Surface Mount 100A

285-Series Circuit Breaker - Surface Mount 100A, to a maximum of 48V DC. Ignition protected - Safe for installation aboard gasoline powered boats.

Features:

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Meets SAE J1171 external ignition protection requirements
• Combines switching and circuit breaker function into one unit*
• "Trip Free" - cannot be held closed after trip

Installation Notes:

• Terminal Stud Torque: 50 in-lb (5.65 Nm)

Why Choose a Resettable Circuit Breaker?

• Resets by hand after a fault, so there are no spare fuses to carry or lose
• Shows the fault instead of hiding it, so a tripped circuit is obvious at the panel
• Sized for marine DC and AC loads rather than an automotive accessory circuit
• Protects the wiring, not just the device on the end of it

Specifications:

• Amperage: 100A
• Maximum Voltage: 48V DC
• Mounting: Surface Mount
• Circuit Breaker Type: Thermally responsive Bi-metal blade
• Terminal Stud: M6 (accepts 1/4" Ring Terminal)
• Interrupt Capacity: 3000A @ 48V
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Circuit Breaker Class: Type III - switchable/manual reset - trip free
• Weight: 0.50lb (0.23 kg)
