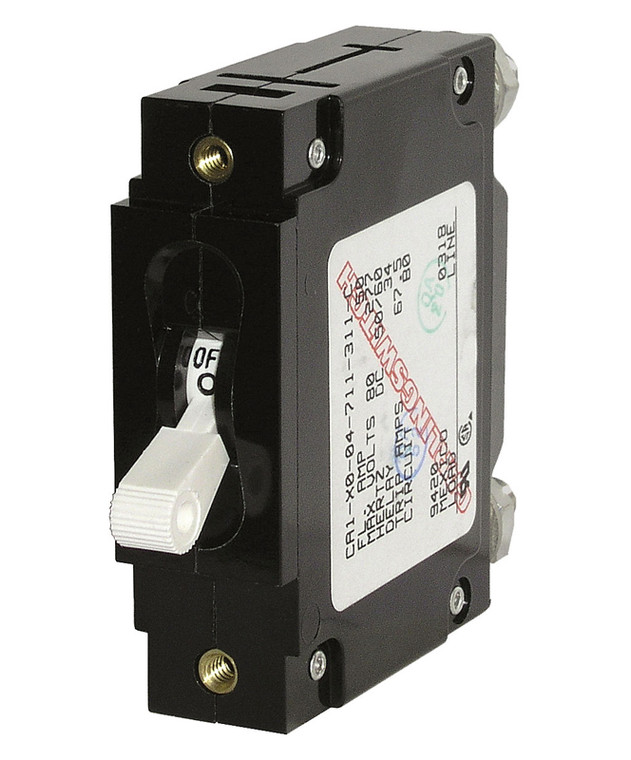

Blue Sea Systems 7355 C-Series White Toggle Circuit Breaker - Single Pole 30 Amp

Blue Sea Systems 7355 C-Series White Toggle Circuit Breaker - Single Pole 30 Amp

C-Series White Toggle Circuit Breaker - Single Pole 30 Amp, to a maximum of 240V AC 80V DC. Provides overcurrent protection for inverters, bow thrusters, and windlasses.

Features:

• Combines switching and circuit protection into a single device
• "Trip Free"—cannot be held closed after trip

Installation Notes:

• Terminal Stud Torque: 35 in-lb (3.95 Nm)

Why Choose a Resettable Circuit Breaker?

• Resets by hand after a fault, so there are no spare fuses to carry or lose
• Shows the fault instead of hiding it, so a tripped circuit is obvious at the panel
• Sized for marine DC and AC loads rather than an automotive accessory circuit
• Protects the wiring, not just the device on the end of it

Specifications:

• Amperage: 30A AC 30A DC
• Color: White
• Actuator Style: Toggle
• Poles: 1
• Maximum Voltage: 240V AC 80V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Terminal Stud: 1/4-20 Tin-Plated Brass
• Interrupt Capacity: 5000A @ 125V AC 5000A @ 240V AC 10000A @ 80V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Switching Cycles: 10000
• Weight: 0.25lb (0.11 kg)
