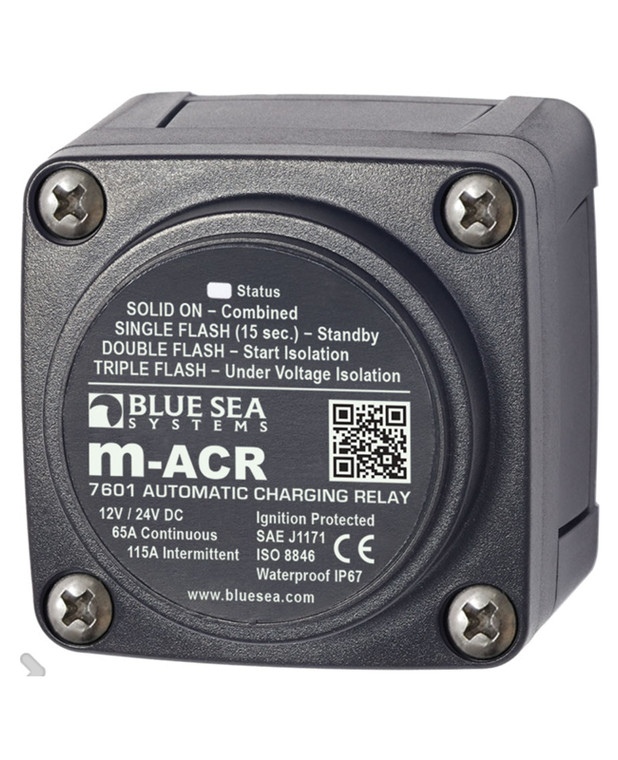

Blue Sea Systems 7601 m-Series Automatic Charging Relay - 12/24V DC 65A

SKU:
BLU7601
|
MPN
7601-BSS
|
UPC:
632085076016
Our Price: $94.99
Current Stock:
1
Adding to cart… The item has been added
Blue Sea Systems 7601 m-Series Automatic Charging Relay - 12/24V DC 65A

m-Series Automatic Charging Relay - 12/24V DC 65A, rated 65A continuous. 7/16" (11 mm) stud length to accept multiple cable terminals.

Features:
  • Senses charging on two battery banks
  • Pull off and snap on insulating cover
  • 1/4" x .032" male quick connect terminal for ground
  • Waterproof – rated IP67 for temporary immersion


Installation Notes:
  • Terminal Stud Torque: 60 in-lb (6.78 Nm)
  • Cable Size to Meet Ratings: 6 AWG


Why Choose This Charger?
  • Charges from the boat's own DC system, with no inverter and no shore power
  • Keeps phones and electronics alive without a cigarette-lighter adapter hanging loose
  • A finished, flush fitting rather than an accessory plugged into a socket
  • Built and sealed for the cockpit, not for a car dashboard


Specifications:
  • Nominal Voltage: 12V DC 24V DC
  • Start Isolation: Yes
  • Amperage Operating Current: 90mA (Combine) 15mA (Open)
  • Continuous Rating: 65A
  • Intermittent Rating: 115A (5 min)
  • Maximum Cable Size: 1/0 AWG
  • Stud Material: Tinned Brass
  • Terminal Stud Size: 1/4" - 20 (M6)
  • Combine 30 sec: 13.6V DC
  • Open 10 sec: 12.35V DC
  • Open 30 sec: 12.75V DC
  • Open High: 16.0V
  • Undervoltage Lockout: 9.5V
  • Weight: 0.80lb (0.36 kg)
Manuals and Instructions 7601 Instructions 7601 Dimensioned Drawing
