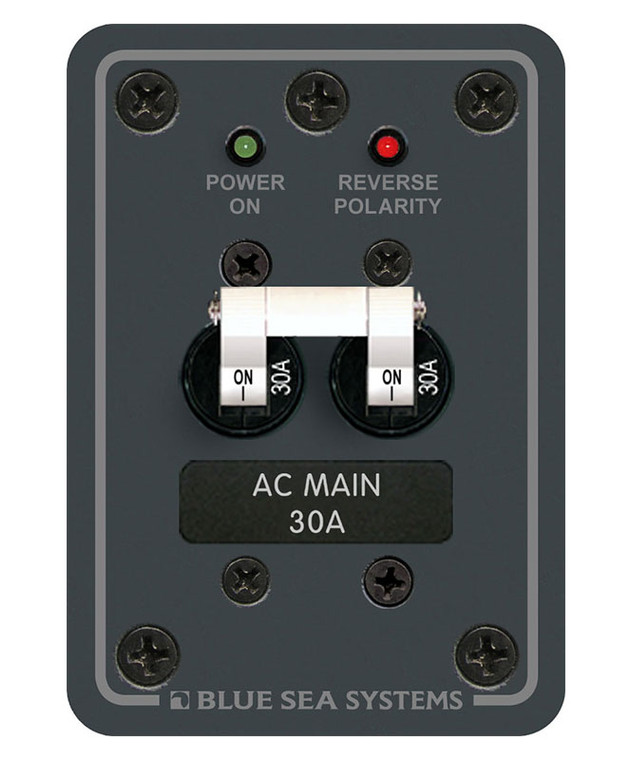

Blue Sea Systems 8077 AC Main 30A
Blue Sea Systems 8077 AC Main 30A
AC Main 30A, to a maximum of 277V AC 65V DC. "Trip Free" design cannot be held "ON" during fault current condition.
Features:
Why Choose This Panel?
Specifications:
AC Main 30A, to a maximum of 277V AC 65V DC. "Trip Free" design cannot be held "ON" during fault current condition.
Features:
- Red reverse polarity indicating LED
- Safety ground screw on panel back
- Combines switching and circuit protection into a single device
Why Choose This Panel?
- Puts switching and circuit protection behind one cut-out instead of scattered devices
- Labelled circuits make a fault quick to isolate at the helm
- A finished, flush installation rather than a hole and a bundle of wires
- Built to marine standards for a damp, vibrating environment
Specifications:
- Nominal Voltage: 120V AC
- Maximum Voltage: 277V AC 65V DC
- Final Panel Finish: 2-part Polyurethane slate gray finish
- Panel Material: Heavy 1/8" aluminum 5052 alloy
- Primary Finish: Mil-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Height: 3.75in (95.25 mm)
- Width: 2.63in (66.8 mm)
- Weight: 0.51lb (0.23 kg)
| Manuals and Instructions | 8077 Instructions 8077 Hardware and Connectors |
|---|---|
| Brand | Blue Sea Systems |
| Cross Reference / Specs | USE WITH: |
