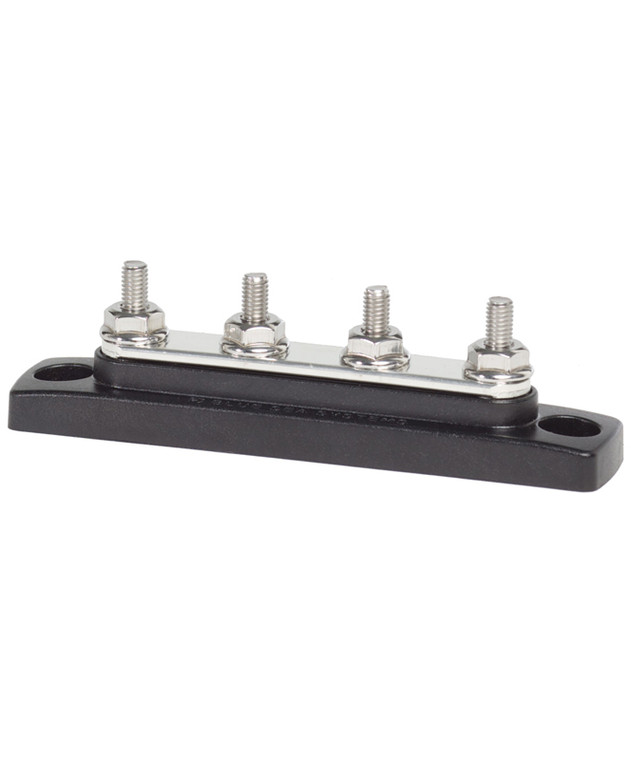

Blue Sea Systems 2305 Common 100A Mini BusBar - 4 Gang
Blue Sea Systems 2305 Common 100A Mini BusBar - 4 Gang
Common 100A Mini BusBar - 4 Gang, rated 100A continuous to a maximum of 300V AC 48V DC. Great for limited space applications.
Installation Notes:
Why Choose This BusBar?
Specifications:
Common 100A Mini BusBar - 4 Gang, rated 100A continuous to a maximum of 300V AC 48V DC. Great for limited space applications.
Installation Notes:
- Stud Torque: 18 in-lb (2.03 Nm)
Why Choose This BusBar?
- Lands many circuits on one bus instead of stacking ring terminals on a single stud
- Keeps connections tight and accessible, which is where most electrical faults start
- Makes the distribution point readable, so the next person can trace a circuit
- Tin-plated copper resists the corrosion a bare copper connection suffers afloat
Specifications:
- Maximum Voltage: 300V AC 48V DC
- Number of Terminal Studs: 4
- Terminal Type: #10-32 Stud
- Continuous Rating: 100A
- Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
- Bus Material: Tin-Plated Copper CDA 110/ UNS11000
- Weight: 0.15lb (0.07 kg)
| Brand | Blue Sea Systems |
|---|---|
| Cross Reference / Specs | USE WITH: |
