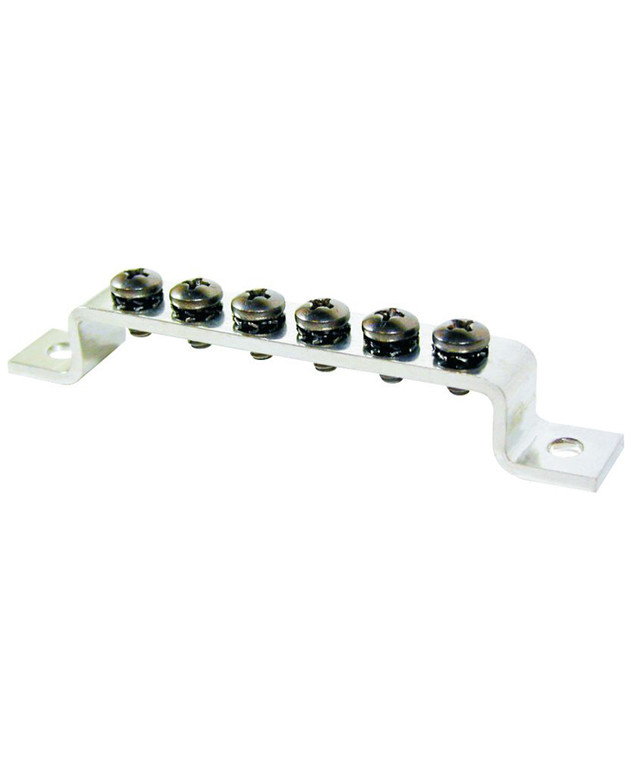

Blue Sea Systems 2306 Common 100A Mini Grounding BusBar - 6 Gang
Blue Sea Systems 2306 Common 100A Mini Grounding BusBar - 6 Gang
Common 100A Mini Grounding BusBar - 6 Gang, rated 100A DC continuous to a maximum of 48V DC. Great for limited space applications.
Installation Notes:
Why Choose This BusBar?
Specifications:
Common 100A Mini Grounding BusBar - 6 Gang, rated 100A DC continuous to a maximum of 48V DC. Great for limited space applications.
Installation Notes:
- Screw Terminal Torque: 15 in-lb (1.69 Nm)
Why Choose This BusBar?
- Lands many circuits on one bus instead of stacking ring terminals on a single stud
- Keeps connections tight and accessible, which is where most electrical faults start
- Makes the distribution point readable, so the next person can trace a circuit
- Tin-plated copper resists the corrosion a bare copper connection suffers afloat
Specifications:
- Maximum Voltage: 48V DC
- Number of Screw Terminals: 6
- Terminal Type: #8-32 Screw
- Continuous Rating: 100A DC
- Bus Material: Tin-Plated Copper CDA 110/ UNS11000
- Weight: 0.10lb (0.05 kg)
| Brand | Blue Sea Systems |
|---|
