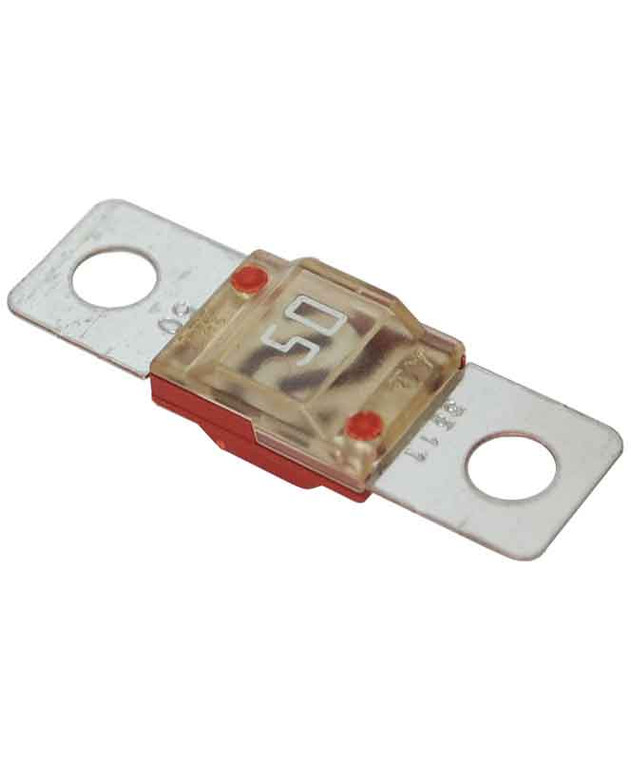

Blue Sea Systems 5252 AMI / MIDI Fuse - 50 Amp
Blue Sea Systems 5252 AMI / MIDI Fuse - 50 Amp
AMI / MIDI Fuse - 50 Amp, to a maximum of 32V DC. Standard circuit protection device for automobiles and trucks.
Features:
Why Choose This Fuse Block?
Specifications:
AMI / MIDI Fuse - 50 Amp, to a maximum of 32V DC. Standard circuit protection device for automobiles and trucks.
Features:
- Fast-acting type fuses ideal for electronic devices
- Tin-plated connector blades for corrosion resistance
- Visible indication of blown condition
Why Choose This Fuse Block?
- Puts the circuit protection in one place instead of inline fuses buried in the harness
- Makes a blown fuse quick to find and quick to change
- Keeps every branch circuit labelled and traceable at one point
- Built for the vibration and damp a boat sees, unlike an automotive block
Specifications:
- Amperage: 50A
- Ignition Protected: Yes
- Maximum Voltage: 32V DC
- Interrupt Capacity: 5000A @ 16V DC 2000A @ 32V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 125° C
- Blade Material: Tin-Plated Copper CDA 110/UNS11000
- Maximum Torque: 40 in-lb (4.52 Nm)
- Weight: 0.05lb (0.02 kg)
| Manuals and Instructions | 5252 Fuse Comparison Chart |
|---|---|
| Brand | Blue Sea Systems |
| Cross Reference / Specs | USE WITH: |
