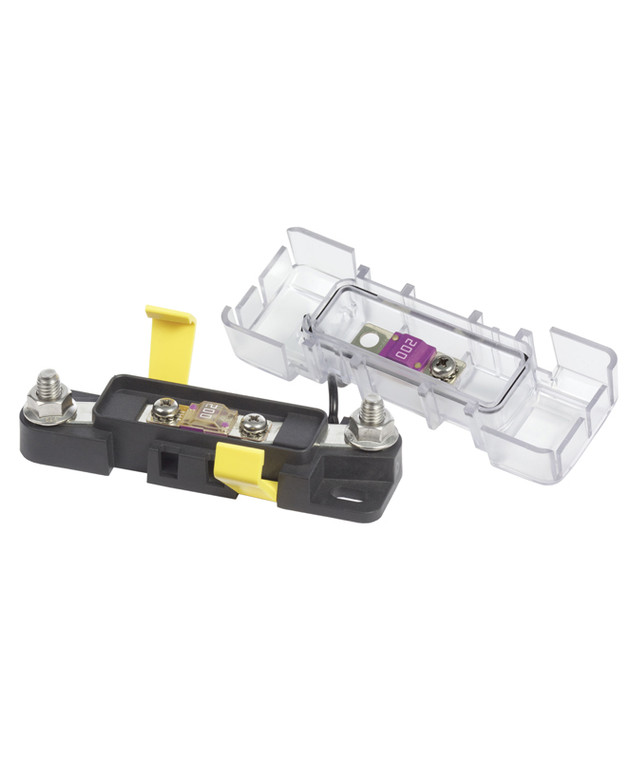

Blue Sea Systems 7720 AMI / MIDI Safety Fuse Block
Blue Sea Systems 7720 AMI / MIDI Safety Fuse Block
AMI / MIDI Safety Fuse Block, to a maximum of 32V DC. Ignition protected for installation aboard gasoline or diesel powered boats.
Features:
Why Choose This Fuse Block?
Specifications:
AMI / MIDI Safety Fuse Block, to a maximum of 32V DC. Ignition protected for installation aboard gasoline or diesel powered boats.
Features:
- Sealed cover protects fuses from the harsh marine environment
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- 200A maximum with 4/0 cable
- Accepts Blue Sea Systems Square Format standard or custom label
Why Choose This Fuse Block?
- Puts the circuit protection in one place instead of inline fuses buried in the harness
- Makes a blown fuse quick to find and quick to change
- Keeps every branch circuit labelled and traceable at one point
- Built for the vibration and damp a boat sees, unlike an automotive block
Specifications:
- Maximum Amperage: 200A
- Maximum Voltage: 32V DC
- Stud Size: M8 x 1.25
- Fuse Screw: M5 x 0.8
- Recommended Screw Torque: 27 in-lb (3.05 N·m)
- Recommended Stud Torque: 120 in-lb (13.56 N·m)
- Ring Terminal Size: M8 (5/16")
- Weight: 0.15lb (0.07 kg)
| Brand | Blue Sea Systems |
|---|---|
| Cross Reference / Specs | USE WITH: |
