Dometic HC5380-3 SeaStar Outboard Cylinder

SKU:
TELHC5380-3
|
MPN
HC5380-3
|
UPC:
731957900784
Our Price: $767.99
Current Stock:
1
Adding to cart… The item has been added

THIS PRODUCT CAN ONLY BE PURCHASED WITH AMAZONPAY, APPLEPAY, GOOGLEPAY OR PAYPAL PAYMENTS. IT WILL BE SHIPPED WITH SIGNATURE REQUIRED SERVICE.

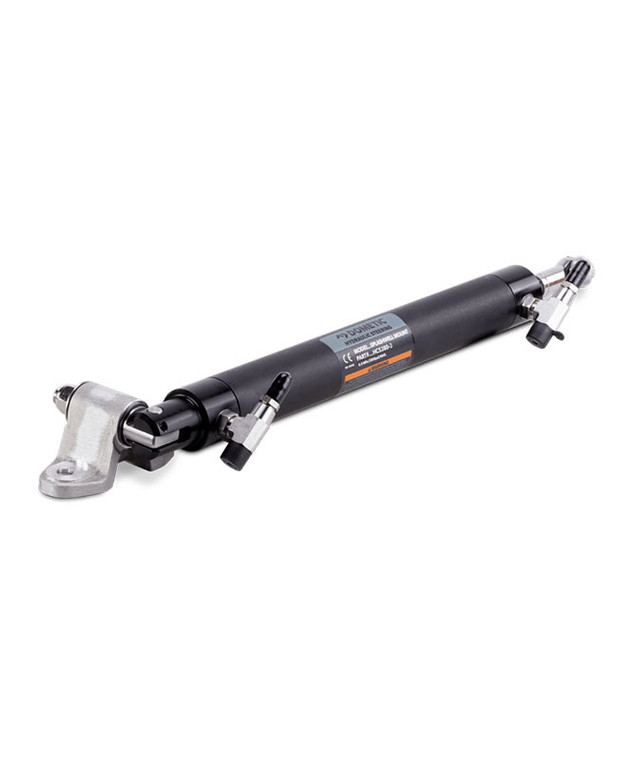

Dometic HC5380-3 SeaStar Outboard Cylinder.

This cylinder is a light duty alternative to front & side mount cylinders. It is unbalanced with 5.5/6.5 turns lock-to-lock and fits engines with/without support (steering) tube. The splashwell mount cylinder is for single & multiple engine capability and has total power to 600 HP in counter rotating application. It can be transom or hull mounted cylinder.

  • Fits Single Engines (Single Cylinder) applications up to 300 HP MAX (number of turns 5.5/6.5), Dual Engines (Single Cylinder NON Counter Rotating) applications up to 300 HP MAX and (ALL Counter Rotating) applications up to 600 HP MAX (number of turns 5.5/6.5) and Dual Engines (Dual Cylinder NON Counter Rotating) applications up to 600 HP MAX and (ALL Counter Rotating) applications up to 600 HP MAX (number of turns 7.5)


    • Features:
  • Splashwell Mount

  • Stroke 9" (229mm)

  • Shaft Diameter .5" (13mm)

  • NOTE: Not for use with SeaStar Pro helms


This cylinder uses the adjustable stainless steel O-ring seal (ORB) fittingsSpecifications:
  • Stroke: 9"
  • Mount: Outboard splashwell
Brand Dometic Marine
Cross Reference / Specs HYNAUTIC
  • K-13
  • K-14

    • SEASTAR SOLUTIONS
  • HC5380
  • HC5380-3

    • CYLINDER MODEL
  • 125-9


    • USE WITH:
  • HF5520 - Bleed Fitting Kit, ORB

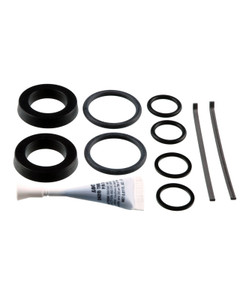

  • HP6088 - Seal Kit, ORB
  • HP6110 - End Gland
    		•
