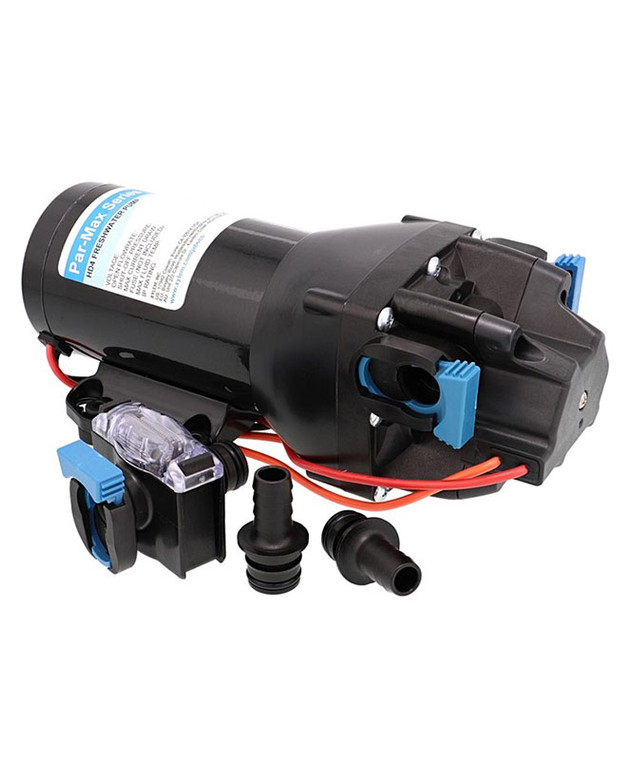

Jabsco Q401J-115S-3A Par-Max HD4 Freshwater Delivery Pump

Jabsco Q401J-115S-3A Par-Max HD4 Freshwater Delivery Pump.

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of satisfactory service in applications both large and small.

The Par-Max HD model includes a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Features:

Flowrate: 4 GPM (15.1 LPM)

Co-molded diaphragm technology for long life and durability

Efficient and quiet operation Integrated, sealed pressure switch for on-demand operation

Self-priming allows for installation versatility

Runs Dry without damage

Self-Priming Quick connect ports for ease of installation, servicing, and maintenance

Vibration dampening mounting feet

Equipped with integrated bypass module to reduce cycling and provide smoother flow

Nominal Voltage: 12 VDC

Max Amp Draw [AMPS]: 10

Recommended Fuse Size [Amps]: 15

Pressure Switch Off Setting [PSI]: 60 PSI (4.1 BAR)

Ports: 2 x 1/2" (13mm) Straight HB
