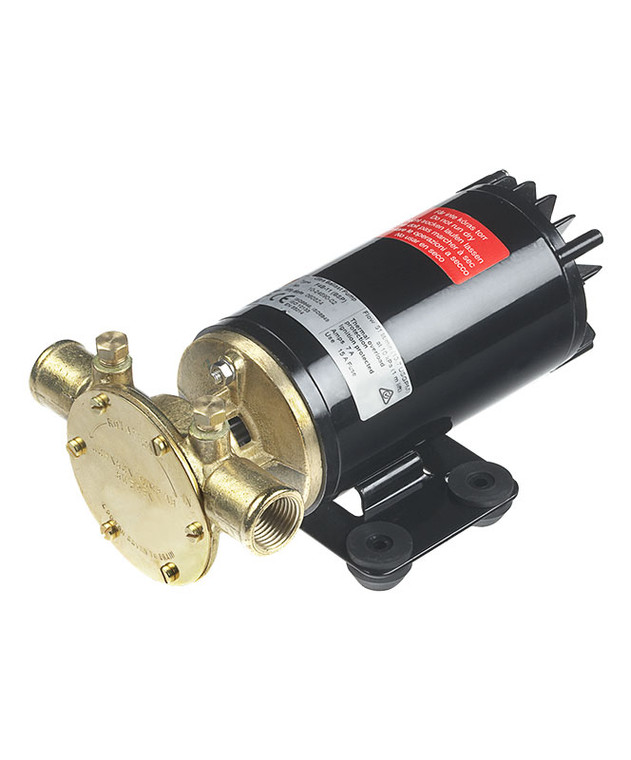

Johnson Pump 10-24690-18 Talulah Ballast Pump 13.5 GPM 12V
Johnson Pump 10-24690-18 Talulah Ballast Pump 13.5 GPM 12V.
High Performance in a Smaller Package!
Specifically designed to quickly fill or, when reversed, drain a ballast tank. Capable of pumping fresh or sea water. Built in Thermal Overload Protection with automatic reset upon cooling. Ideal for system with tank monitoring for overfill and protection against dry-run while emptying. Retrofit Ready for existing wake and watersport boats with approved electrical and plumbing specifications. Improved impeller compounds designed for short duration *dry-run events to keep you on the water longer. High Performance and High Output for intermittent duty cycles. Best used with fully charged battery banks and alternators running.
Features:
Talulah Impeller Kit: 09-824P-2
Flow: 13.5 GPM
Voltage: 13.6VDC
Connection: External 1" standard hose Internal 1/2" NPT (female)
Minimum Hose Size: 1" (Ø25.4 mm)
Wire Size: Min. 12 AWG
Fuse Size: 25A
Amp Draw @ Pumping: 14A
Amp Draw @ Reversal: Up to 18A
Standards: Meets ISO 8846 & SAE J1171
Degree of Protection: IP 54
High Performance in a Smaller Package!
Specifically designed to quickly fill or, when reversed, drain a ballast tank. Capable of pumping fresh or sea water. Built in Thermal Overload Protection with automatic reset upon cooling. Ideal for system with tank monitoring for overfill and protection against dry-run while emptying. Retrofit Ready for existing wake and watersport boats with approved electrical and plumbing specifications. Improved impeller compounds designed for short duration *dry-run events to keep you on the water longer. High Performance and High Output for intermittent duty cycles. Best used with fully charged battery banks and alternators running.
Features:
| Brand | Johnson Pump |
|---|---|
| Cross Reference / Specs | JOHNSON PUMP
USE WITH: |
