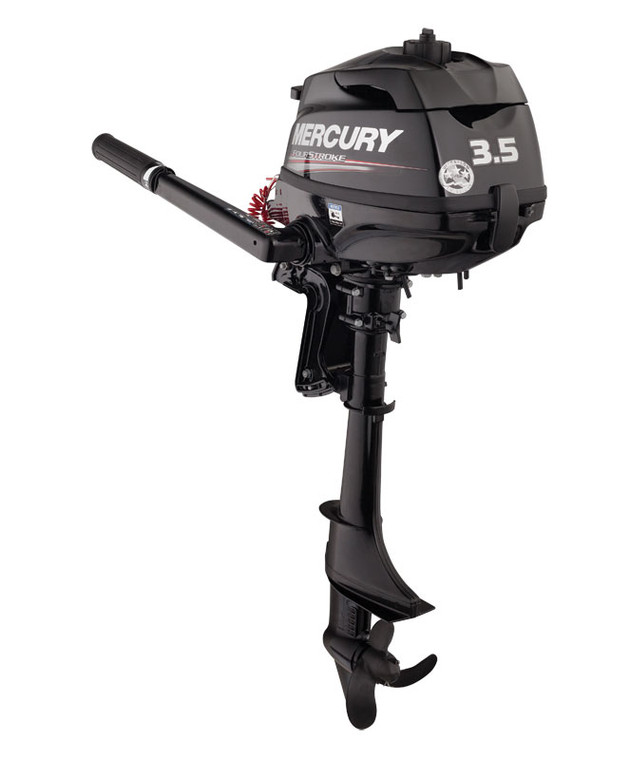

Mercury 3.5HP Outboard Engine Short Shaft (1F03201KK) – 4-Stroke Portable

Mercury 3.5HP 4-Stroke Outboard Engine (1F03201KK) is a lightweight and portable short shaft outboard designed for reliable performance on small boats, inflatables, jon boats, and sailboats.

This compact Mercury outboard delivers efficient power, easy handling, and dependable starting, making it ideal for auxiliary use or small watercraft. Its simple design and durable construction provide consistent performance in a wide range of marine conditions.



Features:

• 3.5 HP 4-stroke outboard engine


• Lightweight and portable design for easy transport


• Short shaft (15 in / 381 mm) for small boat applications


• Manual start with reliable CDI ignition


• Tiller steering with 360 degree rotation


• Integrated fuel tank (0.3 gal / 1.1 L)


• Water-cooled system with thermostat


• Forward and neutral gear shift


• Fuel efficient carbureted system


• Recommended fuel: 87 octane, up to 10 percent ethanol


• Recommended oil: Mercury FourStroke 10W-30


• Dry weight: 38 lbs (17 kg)


• CARB 3-star emissions rating


• Ideal for inflatables, jon boats, utility boats, and small sailboats

Specifications:

• Engine type: 1 cylinder, 2-valve overhead valve


• Displacement: 85 cc (5.2 CID)


• Full throttle RPM: 5000 - 6000


• Gear ratio: 2.15:1


• Bore x stroke: 55 x 36 mm (2.16 x 1.42 in)


• Cooling system: Water-cooled with thermostat


• Exhaust: Above propeller


• Trim system: 4-position manual


• Shallow water trim range: 16 degrees


• Color: Phantom Black
